Alpine 15AEMB-LR All Electric Tube Bender
Alpine 15AEMB-LR All-Electric Tube Bender
Introduction:

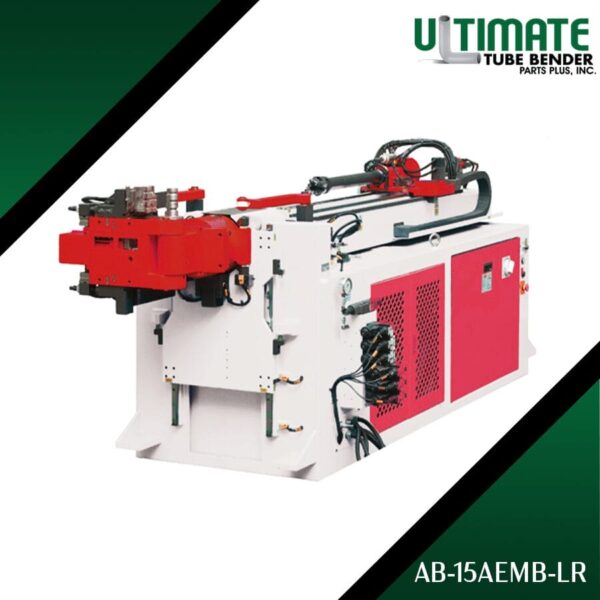

Embrace advanced bending technology with the Alpine 15AEMB-LR, a compact all-electric tube bender designed for precision and efficiency. Tailored for small diameter tubes up to 15mm, it’s the ideal choice for industries that demand high accuracy and eco-friendly operations. From automotive parts to aerospace components, this machine delivers consistent, perfect bends every time, thanks to its electric servo motors and user-friendly interface.
Key Features:
- All-Electric Precision: Delivers exceptional accuracy and repeatability in bending, courtesy of sophisticated electric servomotors.
- Compact and Eco-Friendly: Offers a space-saving design with a reduced environmental footprint, moving away from hydraulic fluids and lowering energy consumption.
- Intuitive User Experience: Features an easy-to-navigate control system, making precise bending accessible to operators of varying skill levels.
Applications:
With its precise control and compact, eco-conscious design, the Alpine 15AEMB-LR is perfectly suited for precision-demanding sectors like automotive, aerospace, and electronics. It is a pivotal tool for achieving flawless bends in small diameter tubing.
Alpine 15AEMB-LR: Precision Bending Redefined
Leverage the Alpine 15AEMB-LR in your production line for unmatched bending accuracy and environmental efficiency. This all-electric tube bender is your answer to meeting stringent quality requirements while advancing towards greener manufacturing practices.
Standard Machine and Accessories
Master IV Controller
- PC base 15″ color LCD Touch Screen control — Easy and fast programming
- Right and Left Hand Bending
- Multi Stack Tooling — Double Bending on Left and Right
- Patented Direct drive A/C servo motor bending head — Less interference area
- Adopts planetary gears assembly as the speed reduction and torque transmission
- Tool included to measure push or roll bending radius
- With DBB alternative Repeat Feeding or End Grip function
- Unlimited Program Storage
- With Metric and Inch setting conversion
- XYZ to YBC conversion
- Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
- Pressure Die assist – booster (excludes 30 model)
- With Independent programmable speeds Y, B, and C axes
- With Air Cooling System
- Automatic Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Tools
- Electric: As required (3 phase 208V or 220V or 480V)
- Safety Mat
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Dynamic Visual Simulation Software — Collision Protection
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
| SPECIFICATION | UNIT | 15AEMB-LR | 20EMB-LR | 30AEMR-LR | 45AEMR-LR |
|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 15 x 1.5 | 20 x 1.5 | 30 x 2.0 | 45 x 2.0 |
| inch | 0.59 x 0.059 | 0.78 x 0.059 | 1.18 x 0.079 | 1.77 x 0.078 | |
| MAX BENDING RADIUS | mm | 10 – 55 | 10 – 70 | 15 – 90 | 30 -150 |
| inch | 0.393 – 2.16 | 0.39 x 2.75 | 0.59 – 3.541 | 1.18 – 5.9 | |
| MAX LENGTH OVER MANDREL | mm | 1000 | 1500 | 2800 | 3000 |
| inch | 39.37 | 59.05 | 110.2 | 118.1 | |
| OVERALL L X W X H | mm | 2700 x 800 x 1400 | 3100 x 850 x 1400 | 4400 x 850 x 1500 | 5200 x 1070 x 1650 |
| inch | 106.3 x 31.4 x 55.1 | 122.0 x 33.5 x 55.1 | 17.32 x 33.4 x 59.0 | 204.7 x 42.1 x 64.9 | |
| TOTAL WEIGHT | kg | 1400 | 1500 | 1400 | 4400 |
| lbs | 2080 | 3300 | 3080 | 9680 |
| SPECIFICATION | UNIT | 75AEMR-LR | 50AEMR | 80AEMR | 100AEMR |
|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 76.2 x 2.0 | 50.8 x 1.8 | 80 x 2.0 | 100 x 3.6 |
| inch | 3.0 x 0.079 | 2.0 x 0.070 | 3.15 x 0.079 | 4.0 x 0.140 | |
| MAX BENDING RADIUS | mm | 40 – 230 | 30 – 150 | 40 – 230 | 30 – 300 |
| inch | 1.57 – 9.05 | 1.18 – 5.9 | 1.57 – 9.05 | 1.18 – 11.8 | |
| MAX LENGTH OVER MANDREL | mm | 3000 | 3200 | 4000 | 4000 |
| inch | 118.10 | 125.9 | 157.4 | 157.4 | |
| OVERALL L X W X H | mm | 5000 x 1500 x 2000 | 5500 x 1500 x 1520 | 5000 x 1500 x 1800 | 7100 x 1750 x 1820 |
| inch | 216.5 x 59.1 x 78.74 | 216 x 59.8 x 59 | 216.5 x 59.1 x 78.74 | 279.5 x 68.9 x 71.65 | |
| TOTAL WEIGHT | kg | 7000 | 3100 | 7000 | 8000 |
| lbs | 15400 | 6820 | 15400 | 17600 |
