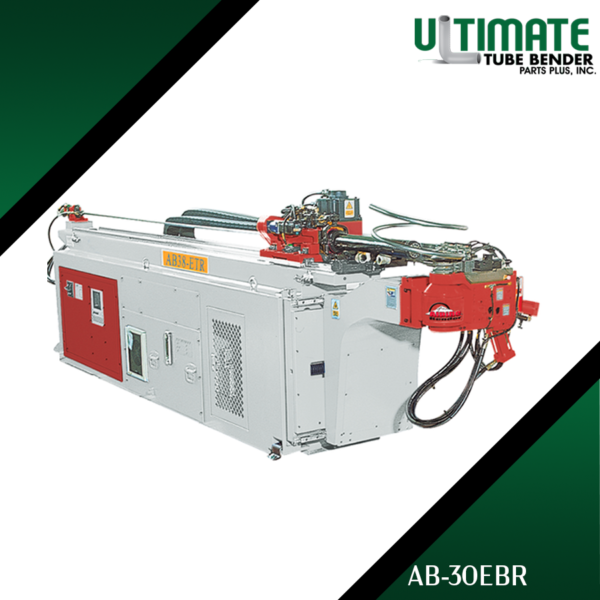

Alpine 30EBR Electric Hybrid Tube Bender
The Alpine 30EBR Electric Hybrid Tube Bender stands out with its capability for advanced double stack bending of tubes up to 30mm. Designed for sectors that require robust and precise bending solutions, like large – scale manufacturing and heavy equipment production, this bender ensures top – tier performance with hybrid efficiency.
The Alpine 30EBR revolutionizes tube bending with its advanced double stacktechnology, providing unparalleled precision and speed for tubes up to 30mm. Thismodel is essential for industries looking to streamline complex bending operations whilemaintaining high standards of quality.
Key Features:
Double Stack Flexibility: Allows complex bending operations to be performedquickly and accurately.
Hybrid Technology: Delivers the perfect balance of electric control andhydraulic power.
High-Throughput Design: Ensures rapid production capabilities withoutsacrificing quality.
Energy-Saving Features: Reduces electricity consumption, supportingsustainable manufacturing goals.
Standard Machine and Accessories:
- Features a Master IV Controller with intuitive touchscreen operation.
- Right and left-hand bending capabilities for maximum versatility.
- Enhanced with automatic safety and maintenance features.
Upgrade Options:
- Includes options for Dynamic Visual Simulation Software and enhanced mandrelretraction units (AMRU).
| SPECIFICATION | UNIT | 25EBR | 30EBR | 38EBR | 50EBR |
|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 25.4 x 1.5 | 30 x 2.0 | 38.1 x 1.8 | 50.8 x 2.0 |
| inch | 1.0 x 0.059 | 1.18 x 0.078 | 1.5 x 0.071 | 2.0 x 0.079 | |
| MAX BENDING RADIUS | mm | 15 – 120 | 15 – 120 | 25 – 150 | 30 – 220 |
| inch | 0.59 – 4.72 | 0.59 – 4.72 | 0.98 – 5.9 | 1.18 – 8.66 | |
| MAX LENGTH OVER MANDREL | mm | 1500 | 2200 | 2200 | 2500 |
| inch | 59.05 | 86.61 | 86.6 | 98.4 | |
| OVERALL L X W X H | mm | 3300 x 920 x 1200 | 4030 x 720 x 1300 | 4200 x 1200 x 1500 | 4650 x 1200 x 1500 |
| inch | 129.9 x 36.2 x 47.2 | 158.6 x 28.3 x 51.2 | 165.3 x 35.4 x 55.1 | 183.1 x 47.2 x 59.0 | |
| TOTAL WEIGHT | kg | 1200 | 1700 | 2080 | 3100 |
| lbs | 2640 | 3740 | 4576 | 6820 |
| SPECIFICATION | UNIT | 65EBR | 80EBR | 100EBR | 130EBR-RBE |
|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 65 x 2.0 | 80 x 2.5 | 100 x 3.0 | 127 x 3.8 |
| inch | 2.56 x 0.079 | 3.15 x 0.098 | 4.0 x 0.118 | 5.0 x 0.15 | |
| MAX BENDING RADIUS | mm | 35 – 250 | 40 x 280 | 30 – 300 | 80 – 400 |
| inch | 1.38 – 9.84 | 1.57 – 11.0 | 1.18 – 11.18 | 3.15 – 15.74 | |
| MAX LENGTH OVER MANDREL | mm | 2500 | 3500 | 3500 | 4000 |
| inch | 98.4 | 137.8 | 137.8 | 157.5 | |
| OVERALL L X W X H | mm | 6150 x 1650 x 1500 | 6350 x 1750 x 2050 | 7050 x 1550 x 1850 | 1100 x 2000 x 2200 |
| inch | 242.1 x 64.9 x 61.0 | 250 x 68.8 x 80.7 | 277.5 x 61.0 x 72.8 | 433 x 78.7 x 86.5 | |
| TOTAL WEIGHT | kg | 4280 | 5890 | 7500 | 11000 |
| lbs | 9416 | 12958 | 16500 | 24200 |
