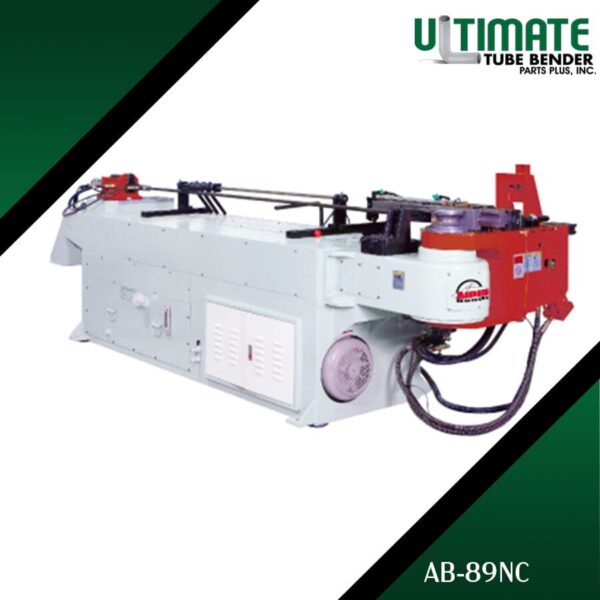

Alpine 89NC Hydraulic Tube Bender

The Alpine AB89NC Hydraulic Tube Bender is engineered for those who require robust bending power and precision. This powerhouse is capable of handling substantial tube diameters, making it an indispensable tool for heavy-duty bending applications.

Alpine 89NC: Power and Precision for Heavy-Duty Bending

The Alpine 89NC Hydraulic Tube Bender represents the pinnacle of bending power and accuracy. It is the ideal choice for businesses looking to enhance their capacity for large diameter tube bending with a machine that combines reliability, safety, and precision.

Key Features:

Enhanced Capability: Perfect for heavy-duty tasks, the 89NC handles tubes up to 89mm, providing the power needed for large diameter bending operations.
Superior Accuracy: This model boasts precise bending capabilities, ensuring every bend is executed flawlessly for high-quality results.
Durable Construction: Built to withstand industrial wear and tear, the 89NC offers unmatched durability and reliability.
Safety Features: Prioritizing operator safety, it is equipped with comprehensive safety systems to prevent accidents during use.

Applications:

Perfect for applications demanding large diameter bending such as petrochemical, power generation, and large-scale construction projects.

Standard Machine and Accessories

Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC- Single Stack Tooling for Draw Bending
Y, B Axes — Manual Feeding and Rotation
C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
100 sets of Program Storage
With Metric and Inch setting conversion
Booster Device of Pressure Die
With Independent programmable speeds Y and B axes (10×8)
Water Cooling System
One shot Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options

AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Upgrade to 1000 sets of Program Storage
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal

SPECIFICATION	UNIT	AB38NC	AB50NC	AB75NC	AB89NC	AB100NC
MAX TUBE O.D.	mm	38.1 x 3.0	50.8 x 3.0	76.2 x 3.0	88.9 x 2.5	101.6 x 5.5
MAX TUBE O.D.	inch	1.5 x 0.118	2.0 x 0.118	3.0 x 0.118	3.5 x 0.157	4.0 x 0.217
MAX BENDING RADIUS	mm	25 -170	30 – 250	40 – 300	40 – 350	60 – 400
MAX BENDING RADIUS	inch	0.98 – 6.6	1.18 – 11.81	1.57 – 11.81	1.57 – 13.77	2.3 – 15.7
MAX LENGTH OVER MANDREL	mm	1900	2200	2600	2600	3600
MAX LENGTH OVER MANDREL	inch	74.8	86.6	102.4	102.4	141.7
OVERALL L X W X H	mm	2600 x 900 x 1100	3000 x 900 x 1200	3600 x 1200 x 1200	3700 x 1200 x 1200	4800 x 1500 x 1400
OVERALL L X W X H	inch	102.4 x 35.4 x 43.3	118.1 x 35.4 x 47.2	141.7 x 47.2 x 47.2	145.7 x 47.2 x 47.2	188.9 x 59.1 x 55.1
TOTAL WEIGHT	kg	850	950	1900	2200	4500
TOTAL WEIGHT	lbs	1870	2090	4180	4840	9900

SPECIFICATION	UNIT	AB120NC	AB150NC	AB180NC	AB220NC
MAX TUBE O.D.	mm	127 x 3.5	152.4 x 7.0	180 x 9.0	220 x 8.0
MAX TUBE O.D.	inch	5.0 x 0.217	6.0 x 0.275	7.0 x 0.275	8.6 x 0.275
MAX BENDING RADIUS	mm	80 – 450	90 – 550	100 – 600	100 – 700
MAX BENDING RADIUS	inch	3.15 – 19.68	3.5 – 21.6	3.93 – 23.6	4.72 – 34.6
MAX LENGTH OVER MANDREL	mm	5200	6000	6000	6000
MAX LENGTH OVER MANDREL	inch	204.7	236.2	236.2	236.2
OVERALL L X W X H	mm	7000 x 1700 x 1600	8100 x 2100 x 1700	8100 x 2300 x 1700	10000 x 2300 x 1900
OVERALL L X W X H	inch	275.5 x 66.9 x 63.0	318.8 x 82.6 x 66.9	318.8 x 90.6 x 66.9	393.7 x 90.6 x 74.8
TOTAL WEIGHT	kg	7200	9000	9800	16500
TOTAL WEIGHT	lbs	15840	19800	21560	36300
