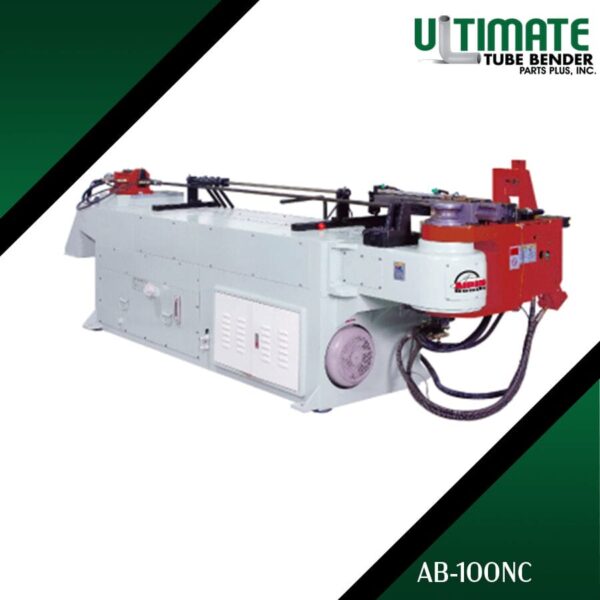

Alpine AB-100NC Hydraulic Tube Bender
Introducing the Alpine AB100NC Hydraulic Tube Bender, a machine that redefines the boundaries of tube bending. With its exceptional capacity and precision, the AB100NC is designed to tackle even the most challenging bending tasks with ease.
Alpine AB100NC: Elevating Industrial Bending Capabilities
The Alpine AB100NC Hydraulic Tube Bender is the solution for industries seeking to push the boundaries of tube bending. Its power, precision, and versatility make it an essential tool for any operation aiming to enhance productivity and tackle complex bending tasks.
Key Features:
- Broad Range: Capable of bending tubes up to 100mm in diameter, the AB100NC is suited for extensive industrial applications requiring substantial bending capacity.
- Precise Bending: Features advanced technology for precise control over every bend, ensuring accuracy and consistency.
- Heavy-Duty Performance: With its sturdy build, the AB100NC stands up to the demands of heavy industrial use, maintaining performance over time.
- Integrated Safety: Equipped with enhanced safety measures, it provides a safe working environment while maintaining high operational standards.
Applications:
Suited for heavy industries such as construction equipment manufacturing, large vehicle assembly, and infrastructure projects requiring large diameter tube bending.
Standard Machine and Accessories
- Master I Controller
- PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
- Right Hand Bending
- ANC- Single Stack Tooling for Draw Bending
- Y, B Axes — Manual Feeding and Rotation
- C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
- 100 sets of Program Storage
- With Metric and Inch setting conversion
- Booster Device of Pressure Die
- With Independent programmable speeds Y and B axes (10×8)
- Water Cooling System
- One shot Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Adjusted Tools
- Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Upgrade to 1000 sets of Program Storage
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Mat
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
| SPECIFICATION | UNIT | AB38NC | AB50NC | AB75NC | AB89NC | AB100NC |
|---|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 38.1 x 3.0 | 50.8 x 3.0 | 76.2 x 3.0 | 88.9 x 2.5 | 101.6 x 5.5 |
| inch | 1.5 x 0.118 | 2.0 x 0.118 | 3.0 x 0.118 | 3.5 x 0.157 | 4.0 x 0.217 | |
| MAX BENDING RADIUS | mm | 25 -170 | 30 – 250 | 40 – 300 | 40 – 350 | 60 – 400 |
| inch | 0.98 – 6.6 | 1.18 – 11.81 | 1.57 – 11.81 | 1.57 – 13.77 | 2.3 – 15.7 | |
| MAX LENGTH OVER MANDREL | mm | 1900 | 2200 | 2600 | 2600 | 3600 |
| inch | 74.8 | 86.6 | 102.4 | 102.4 | 141.7 | |
| OVERALL L X W X H | mm | 2600 x 900 x 1100 | 3000 x 900 x 1200 | 3600 x 1200 x 1200 | 3700 x 1200 x 1200 | 4800 x 1500 x 1400 |
| inch | 102.4 x 35.4 x 43.3 | 118.1 x 35.4 x 47.2 | 141.7 x 47.2 x 47.2 | 145.7 x 47.2 x 47.2 | 188.9 x 59.1 x 55.1 | |
| TOTAL WEIGHT | kg | 850 | 950 | 1900 | 2200 | 4500 |
| lbs | 1870 | 2090 | 4180 | 4840 | 9900 |
| SPECIFICATION | UNIT | AB120NC | AB150NC | AB180NC | AB220NC |
|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 127 x 3.5 | 152.4 x 7.0 | 180 x 9.0 | 220 x 8.0 |
| inch | 5.0 x 0.217 | 6.0 x 0.275 | 7.0 x 0.275 | 8.6 x 0.275 | |
| MAX BENDING RADIUS | mm | 80 – 450 | 90 – 550 | 100 – 600 | 100 – 700 |
| inch | 3.15 – 19.68 | 3.5 – 21.6 | 3.93 – 23.6 | 4.72 – 34.6 | |
| MAX LENGTH OVER MANDREL | mm | 5200 | 6000 | 6000 | 6000 |
| inch | 204.7 | 236.2 | 236.2 | 236.2 | |
| OVERALL L X W X H | mm | 7000 x 1700 x 1600 | 8100 x 2100 x 1700 | 8100 x 2300 x 1700 | 10000 x 2300 x 1900 |
| inch | 275.5 x 66.9 x 63.0 | 318.8 x 82.6 x 66.9 | 318.8 x 90.6 x 66.9 | 393.7 x 90.6 x 74.8 | |
| TOTAL WEIGHT | kg | 7200 | 9000 | 9800 | 16500 |
| lbs | 15840 | 19800 | 21560 | 36300 |
