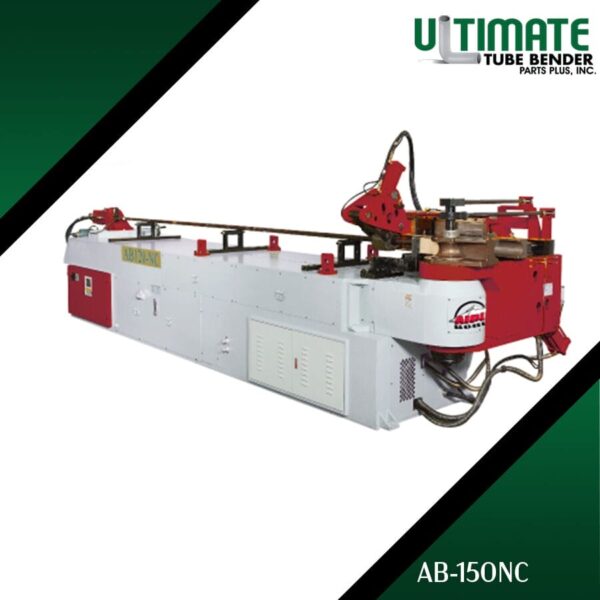

Alpine AB-150NC Hydraulic Tube Bender
Alpine AB150NC: Mastering the Art of Heavy-Duty Bending
With the Alpine AB150NC Hydraulic Tube Bender, tackling the most substantial and demanding bending tasks becomes not just possible, but efficient and reliable. It’s the ultimate tool for those who need to bend large diameter tubes with precision and confidence.
Key Features:
- Superior Bending Power: Tailored for the most challenging projects, the AB150NC accurately bends tubes up to 150mm, offering unparalleled bending capabilities.
- Advanced Precision: Utilizes cutting-edge technology to achieve precise bending results, ensuring operational excellence and product quality.
- Industrial Strength: Crafted for durability, it withstands continuous operation in demanding settings, promising long-term dependability.
- Safety Commitment: Designed with the operator’s safety in mind, incorporating multiple safety features to mitigate risks.
Applications:
Essential for very large industrial applications, including structural engineering projects, large industrial machinery, and in the energy sector for pipeline constructions.
Standard Machine and Accessories
- Master I Controller
- PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
- Right Hand Bending
- ANC- Single Stack Tooling for Draw Bending
- Y, B Axes — Manual Feeding and Rotation
- C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
- 100 sets of Program Storage
- With Metric and Inch setting conversion
- Booster Device of Pressure Die
- With Independent programmable speeds Y and B axes (10×8)
- Water Cooling System
- One shot Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Adjusted Tools
- Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Upgrade to 1000 sets of Program Storage
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Mat
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
The Alpine AB-150NC Hydraulic Tube Bender is a robust tool engineered for precision bending of tubes up to 150mm in diameter. Ideal for heavy-duty applications in industries such as automotive, shipbuilding, and construction, this NC (Numerically Controlled) machine offers exceptional control and accuracy, ensuring high-quality bends with consistent results. The AB-150NC combines hydraulic power with advanced programming capabilities, making it versatile for both simple and complex bending operations.
AB38NC Specifications (up to 1.5″ OD Capacity)
| SPECIFICATION | UNIT | AB38NC | AB50NC | AB75NC | AB89NC | AB100NC |
|---|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 38.1 x 3.0 | 50.8 x 3.0 | 76.2 x 3.0 | 88.9 x 2.5 | 101.6 x 5.5 |
| inch | 1.5 x 0.118 | 2.0 x 0.118 | 3.0 x 0.118 | 3.5 x 0.157 | 4.0 x 0.217 | |
| MAX BENDING RADIUS | mm | 25 -170 | 30 – 250 | 40 – 300 | 40 – 350 | 60 – 400 |
| inch | 0.98 – 6.6 | 1.18 – 11.81 | 1.57 – 11.81 | 1.57 – 13.77 | 2.3 – 15.7 | |
| MAX LENGTH OVER MANDREL | mm | 1900 | 2200 | 2600 | 2600 | 3600 |
| inch | 74.8 | 86.6 | 102.4 | 102.4 | 141.7 | |
| OVERALL L X W X H | mm | 2600 x 900 x 1100 | 3000 x 900 x 1200 | 3600 x 1200 x 1200 | 3700 x 1200 x 1200 | 4800 x 1500 x 1400 |
| inch | 102.4 x 35.4 x 43.3 | 118.1 x 35.4 x 47.2 | 141.7 x 47.2 x 47.2 | 145.7 x 47.2 x 47.2 | 188.9 x 59.1 x 55.1 | |
| TOTAL WEIGHT | kg | 850 | 950 | 1900 | 2200 | 4500 |
| lbs | 1870 | 2090 | 4180 | 4840 | 9900 |
| SPECIFICATION | UNIT | AB120NC | AB150NC | AB180NC | AB220NC |
|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 127 x 3.5 | 152.4 x 7.0 | 180 x 9.0 | 220 x 8.0 |
| inch | 5.0 x 0.217 | 6.0 x 0.275 | 7.0 x 0.275 | 8.6 x 0.275 | |
| MAX BENDING RADIUS | mm | 80 – 450 | 90 – 550 | 100 – 600 | 100 – 700 |
| inch | 3.15 – 19.68 | 3.5 – 21.6 | 3.93 – 23.6 | 4.72 – 34.6 | |
| MAX LENGTH OVER MANDREL | mm | 5200 | 6000 | 6000 | 6000 |
| inch | 204.7 | 236.2 | 236.2 | 236.2 | |
| OVERALL L X W X H | mm | 7000 x 1700 x 1600 | 8100 x 2100 x 1700 | 8100 x 2300 x 1700 | 10000 x 2300 x 1900 |
| inch | 275.5 x 66.9 x 63.0 | 318.8 x 82.6 x 66.9 | 318.8 x 90.6 x 66.9 | 393.7 x 90.6 x 74.8 | |
| TOTAL WEIGHT | kg | 7200 | 9000 | 9800 | 16500 |
| lbs | 15840 | 19800 | 21560 | 36300 |
