Alpine Tube Bender AB-180NC

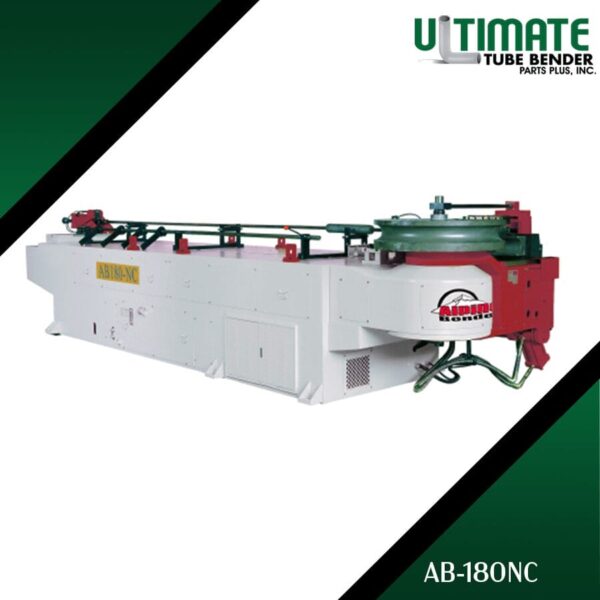

Alpine AB-180NC Hydraulic Tube Bender

The Alpine AB180NC Hydraulic Tube Bender represents the zenith of bending technology, designed for those who demand the highest capacity and precision. It stands as the flagship model in the NC series, ready to tackle the largest and most complex bending operations.
GET A QUOTE
VIEW CATALOG

Alpine AB180NC: The Ultimate in Bending Capacity and Precision

The Alpine AB180NC Hydraulic Tube Bender is unparalleled in its ability to handle the most demanding bending operations with ease and accuracy. For businesses that require the best in terms of capacity and precision, the AB180NC is the definitive choice.

Key Features:

  • Maximum Bending Capacity: The pinnacle of the NC series, the AB180NC handles tubes up to 180mm, supporting the widest range of industrial bending tasks.
  • Precision Engineering: Delivers consistently accurate bends, making it a cornerstone for industries where precision is critical.
  • Built for the Long Haul: Its construction is designed to endure, providing reliable service through years of heavy use.
  • Operator Safety: Emphasizes safety with comprehensive protective features, ensuring a secure workplace for all users.

Applications:

The ultimate choice for energy, manufacturing, and any sector requiring large diameter pipe bending.

Standard Machine and Accessories

  • Master I Controller
  • PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
  • Right Hand Bending
  • ANC- Single Stack Tooling for Draw Bending
  • Y, B Axes — Manual Feeding and Rotation
  • C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
  • 100 sets of Program Storage
  • With Metric and Inch setting conversion
  • Booster Device of Pressure Die
  • With Independent programmable speeds Y and B axes (10×8)
  • Water Cooling System
  • One shot Slide-way Lubrication for bend arm to reduce maintenance time
  • Foot Pedal Cycle start
  • Wiper die Bracket
  • 3 Mandrel Rods
  • Operation and Maintenance Manual
  • Tool Box with Adjusted Tools
  • Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options

  • AMRU — Anticipate Mandrel Retraction Unit
  • AML — Auto Mandrel Lubrication
  • Upgrade to 1000 sets of Program Storage
  • Safety Mat Connection Ready (without CE Mark)
  • CE Mark
  • Safety Mat
  • Safety Scanner
  • Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal



AB38NC Specifications (up to 1.5″ OD Capacity)

SPECIFICATIONUNITAB38NCAB50NCAB75NCAB89NCAB100NC
MAX TUBE O.D.mm38.1 x 3.050.8 x 3.076.2 x 3.088.9 x 2.5101.6 x 5.5
inch1.5 x 0.1182.0 x 0.1183.0 x 0.1183.5 x 0.1574.0 x 0.217
MAX BENDING RADIUSmm25 -17030 – 25040 – 30040 – 35060 – 400
inch0.98 – 6.61.18 – 11.811.57 – 11.811.57 – 13.772.3 – 15.7
MAX LENGTH OVER MANDRELmm19002200260026003600
inch74.886.6102.4102.4141.7
OVERALL L X W X Hmm2600 x 900 x 11003000 x 900 x 12003600 x 1200 x 12003700 x 1200 x 12004800 x 1500 x 1400
inch102.4 x 35.4 x 43.3118.1 x 35.4 x 47.2141.7 x 47.2 x 47.2145.7 x 47.2 x 47.2188.9 x 59.1 x 55.1
TOTAL WEIGHTkg850950190022004500
lbs18702090418048409900
SPECIFICATIONUNITAB120NCAB150NCAB180NCAB220NC
MAX TUBE O.D.mm127 x 3.5152.4 x 7.0180 x 9.0220 x 8.0
inch5.0 x 0.2176.0 x 0.2757.0 x 0.2758.6 x 0.275
MAX BENDING RADIUSmm80 – 45090 – 550100 – 600100 – 700
inch3.15 – 19.683.5 – 21.63.93 – 23.64.72 – 34.6
MAX LENGTH OVER MANDRELmm5200600060006000
inch204.7236.2236.2236.2
OVERALL L X W X Hmm7000 x 1700 x 16008100 x 2100 x 17008100 x 2300 x 170010000 x 2300 x 1900
inch275.5 x 66.9 x 63.0318.8 x 82.6 x 66.9318.8 x 90.6 x 66.9393.7 x 90.6 x 74.8
TOTAL WEIGHTkg72009000980016500
lbs15840198002156036300
