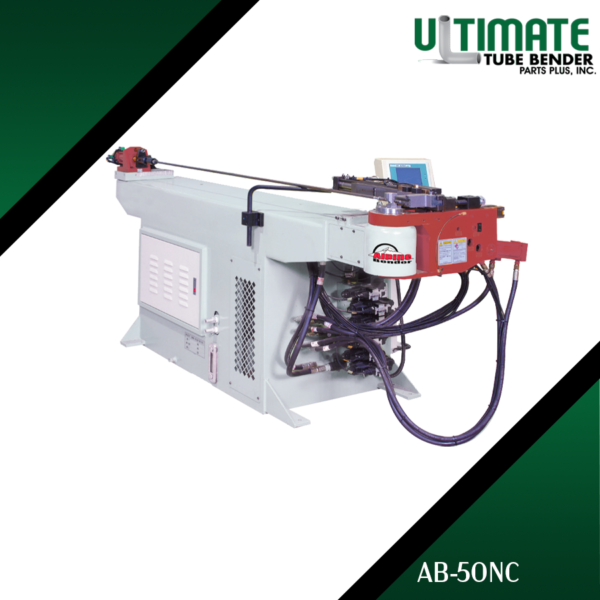

Alpine AB-50NC Hydraulic Tube Bender
Elevate your bending capabilities with the Alpine AB-50NC Hydraulic Tube Bender, a machine that stands at the forefront of bending technology with its robust design and precision performance. Tailored for medium to heavy-duty applications, the AB-50NC is your go-to solution for complex bending challenges, offering unmatched precision and versatility.
Alpine AB-50NC: The Choice for Precision and Durability
Selecting the Alpine AB-50NC Hydraulic Tube Bender signifies a commitment to quality and efficiency. Its advanced features and durable design make it an invaluable addition to any operation looking to streamline its bending processes and tackle more complex projects with confidence.
Key Features:
- Advanced Precision: Experience superior bending accuracy with the AB-50NC, which features an advanced hydraulic system and precise controls. Achieve perfect bends on tubes up to 50mm in diameter, with consistency across all operations.
- Enhanced Capacity: The AB-50NC is engineered to handle a broad range of tube sizes and materials, making it a versatile asset for industries requiring intricate bends in medium to heavy-duty applications.
- Streamlined Operation: Designed with user experience in mind, this bender features an intuitive interface that simplifies the bending process, enabling operators to achieve optimal results with minimal training.
- Built to Last: With its rugged construction, the AB-50NC is built for durability and reliability, ensuring it can withstand the rigors of continuous industrial use without compromising performance.
- Safety First: Incorporating essential safety features, the AB-50NC ensures a safe operating environment for its users, making it a reliable choice for workshops prioritizing safety without sacrificing efficiency.
Applications:
The AB-50NC is ideal for industries requiring precise bends in applications such as structural frameworks, architectural designs, and industrial machinery components, offering the flexibility and reliability needed for demanding projects.
Standard Machine and Accessories
- Master I Controller
- PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
- Right Hand Bending
- ANC- Single Stack Tooling for Draw Bending
- Y, B Axes — Manual Feeding and Rotation
- C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
- 100 sets of Program Storage
- With Metric and Inch setting conversion
- Booster Device of Pressure Die
- With Independent programmable speeds Y and B axes (10×8)
- Water Cooling System
- One shot Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Adjusted Tools
- Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Upgrade to 1000 sets of Program Storage
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Mat
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
| SPECIFICATION | UNIT | AB38NC | AB50NC | AB75NC | AB89NC | AB100NC |
|---|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 38.1 x 3.0 | 50.8 x 3.0 | 76.2 x 3.0 | 88.9 x 2.5 | 101.6 x 5.5 |
| inch | 1.5 x 0.118 | 2.0 x 0.118 | 3.0 x 0.118 | 3.5 x 0.157 | 4.0 x 0.217 | |
| MAX BENDING RADIUS | mm | 25 -170 | 30 – 250 | 40 – 300 | 40 – 350 | 60 – 400 |
| inch | 0.98 – 6.6 | 1.18 – 11.81 | 1.57 – 11.81 | 1.57 – 13.77 | 2.3 – 15.7 | |
| MAX LENGTH OVER MANDREL | mm | 1900 | 2200 | 2600 | 2600 | 3600 |
| inch | 74.8 | 86.6 | 102.4 | 102.4 | 141.7 | |
| OVERALL L X W X H | mm | 2600 x 900 x 1100 | 3000 x 900 x 1200 | 3600 x 1200 x 1200 | 3700 x 1200 x 1200 | 4800 x 1500 x 1400 |
| inch | 102.4 x 35.4 x 43.3 | 118.1 x 35.4 x 47.2 | 141.7 x 47.2 x 47.2 | 145.7 x 47.2 x 47.2 | 188.9 x 59.1 x 55.1 | |
| TOTAL WEIGHT | kg | 850 | 950 | 1900 | 2200 | 4500 |
| lbs | 1870 | 2090 | 4180 | 4840 | 9900 |
| SPECIFICATION | UNIT | AB120NC | AB150NC | AB180NC | AB220NC |
|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 127 x 3.5 | 152.4 x 7.0 | 180 x 9.0 | 220 x 8.0 |
| inch | 5.0 x 0.217 | 6.0 x 0.275 | 7.0 x 0.275 | 8.6 x 0.275 | |
| MAX BENDING RADIUS | mm | 80 – 450 | 90 – 550 | 100 – 600 | 100 – 700 |
| inch | 3.15 – 19.68 | 3.5 – 21.6 | 3.93 – 23.6 | 4.72 – 34.6 | |
| MAX LENGTH OVER MANDREL | mm | 5200 | 6000 | 6000 | 6000 |
| inch | 204.7 | 236.2 | 236.2 | 236.2 | |
| OVERALL L X W X H | mm | 7000 x 1700 x 1600 | 8100 x 2100 x 1700 | 8100 x 2300 x 1700 | 10000 x 2300 x 1900 |
| inch | 275.5 x 66.9 x 63.0 | 318.8 x 82.6 x 66.9 | 318.8 x 90.6 x 66.9 | 393.7 x 90.6 x 74.8 | |
| TOTAL WEIGHT | kg | 7200 | 9000 | 9800 | 16500 |
| lbs | 15840 | 19800 | 21560 | 36300 |
