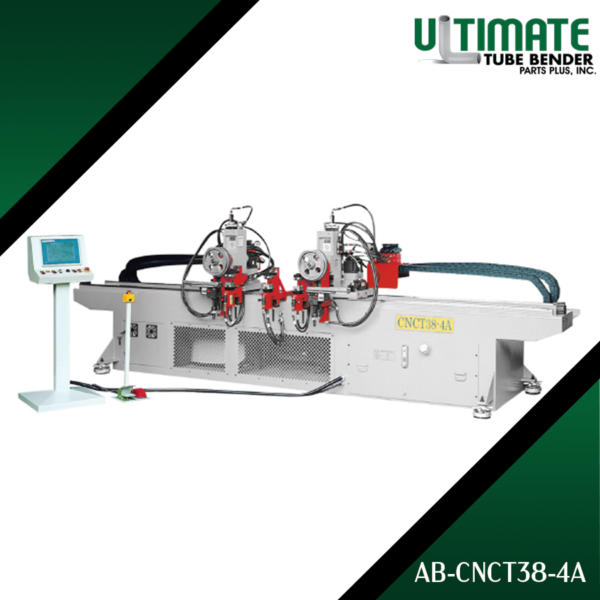

Alpine CNC T38-4A Twin Head Tube Bender

The Alpine CNC T38-4A Twin Head Tube Bender is engineered for high-tech precision bending of symmetric tube parts up to 38mm. Featuring advanced hydraulic compression technology, it is ideal for industries requiring complex and accurate bending. The CNC T38-4A’s robust system ensures consistent, repeatable bends, making it a top choice for high-quality manufacturing.

Introduction

The Alpine CNC T38-4A Hydraulic Twin Head Tube Bender offers exceptional performance for bending symmetric tube parts up to 38mm, integrating advanced automation and precision. Designed for complex applications, it ensures accurate and repeatable bends with robust hydraulic operation.

Key Features:

High-Tech Precision: Handles tubes up to 38mm with advanced hydraulic compression technology.
Advanced Control System: Provides precise control and repeatable results.
Durable and Reliable: Built to withstand heavy-duty industrial use.
User-Friendly Interface: Features intuitive controls for easy operation.

Standard Machine and Accessories:

Master IV Controller with 15″ color LCD Touch Screen: Easy programming and operation.
Symmetric Bending Capability: Right and left-hand bending and multi-stack tooling.
Patented Direct Drive A/C Servo Motor Bending Head: Minimizes interference and enhances accuracy.
Tools for Measuring Push or Roll Bending Radius
Unlimited Program Storage, Metric and Inch Setting, and XYZ to YBC Conversion
Air Cooling System, Automatic Slide-way Lubrication, Foot Pedal Cycle Start, Wiper Die Bracket, and 3 Mandrel Rods
Operation and Maintenance Manual, Tool Box with Tools, Customizable Electric Specs (3 phase 208V, 220V, 480V), and a Safety Mat

Upgrade Options:

AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication): For enhanced performance.
Dynamic Visual Simulation Software: Provides collision protection.
Safety Mat Connection, CE Mark, Safety Scanner, and a Free Standing Pedestal: Replaces the foot pedal.

SPECIFICATION	UNIT	T38	T50	T38-90	CNCT38-4A	CNCT38-5A
MAX TUBE O.D.	mm	38.1 x 2.5	50 x 2.0	38.1 x 2.5	38 x 2.5	38 x 2.5
MAX TUBE O.D.	inch	1.5 x 0.098	2.0 x 0.063	1.5 x 0.098	1.5 x 0.098	1.5 x 0.098
MAX BENDING RADIUS	mm	38 – 180	40 – 250	38 – 180	38 – 180	38 – 180
MAX BENDING RADIUS	inch	0..8 – 6.6	1.57 – 9.84	0.98 – 6.6	1.5 – 6.6	1.5 – 6.6
MULTI TUBE BENDING – OD 3/4″	pc	3600	5000	5000	6000	6000
MULTI TUBE BENDING – OD 7/8″	pc	3-4	4-5	3-4	3-4	3-4
MULTI TUBE BENDING – OD 1″	pc	2-3	3-4	2-3	2-3	2-3
MULTI TUBE BENDING – OD 1-1/2″	pc	1-2	2-3	1	1	1
OVERALL L X W X H	mm	1900 x 1000 x 1500	2800 x 1400 x 1800	1900 x 1000 x 1500	7000 x 1200 x 1500	7000 x 1200 x 1500
OVERALL L X W X H	inch	174.8 x 39.4 x 59.1	110.2 x 55.1 x 70.8	174.8 x 39.4 x 59.1	275.6 x 47.2 x 59.1	275.6 x 47.2 x 59.1
TOTAL WEIGHT	kg	1000	1800	1000	2100	2200
TOTAL WEIGHT	lbs	2200	3960	2200	4620	4840
