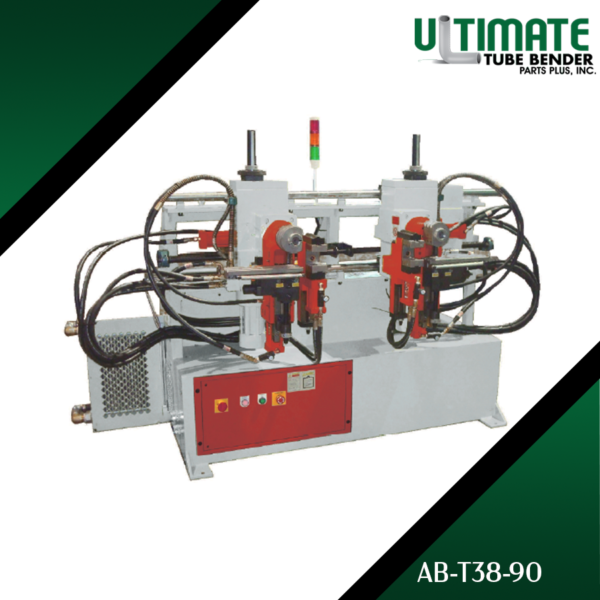

Alpine T38-90 Twin Head Tube Bender

The Alpine T38-90 Twin Head Hydraulic Tube Bender is engineered for precision bending of symmetric tube parts up to 38mm with 90-degree capability. Utilizing robust hydraulic technology and strong crank-link systems, it ensures high-quality bending results. Ideal for industries demanding precise and consistent symmetric bends, the T38-90 combines durability and accuracy for superior performance.

Introduction

The Alpine T38-90 Twin Head Hydraulic Tube Bender provides exceptional performance for bending symmetric tube parts up to 38mm with 90-degree capability. Designed for high-demand applications, it delivers precise and repeatable bends, ensuring the highest quality in symmetric bending processes.

Key Features:

Precision Symmetric Bending: Handles tubes up to 38mm with 90-degree capability and advanced hydraulic compression technology.
Robust Compression System: Utilizes crank-link systems and strong hydraulic forces for high-quality bends.
Durable Construction: Built to withstand rigorous industrial use while maintaining precision.
Advanced Control System: Features user-friendly controls for precise adjustments and operation.

Standard Machine and Accessories:

Master IV Controller with 15″ color LCD Touch Screen: For easy programming and operation.
Symmetric Bending Capability: Right and left-hand bending and multi-stack tooling.
Patented Direct Drive A/C Servo Motor Bending Head: Reduces interference and enhances accuracy.
Tools for Measuring Push or Roll Bending Radius
Unlimited Program Storage, Metric and Inch Setting, and XYZ to YBC Conversion
Air Cooling System, Automatic Slide-way Lubrication, Foot Pedal Cycle Start, Wiper Die Bracket, and 3 Mandrel Rods
Operation and Maintenance Manual, Tool Box with Tools, Customizable Electric Specs (3 phase 208V, 220V, 480V), and a Safety Mat

Upgrade Options:

AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication): For enhanced performance.
Dynamic Visual Simulation Software: Provides collision protection.
Safety Mat Connection, CE Mark, Safety Scanner, and a Free Standing Pedestal: Replaces the foot pedal.

SPECIFICATION	UNIT	T38	T50	T38-90	CNCT38-4A	CNCT38-5A
MAX TUBE O.D.	mm	38.1 x 2.5	50 x 2.0	38.1 x 2.5	38 x 2.5	38 x 2.5
MAX TUBE O.D.	inch	1.5 x 0.098	2.0 x 0.063	1.5 x 0.098	1.5 x 0.098	1.5 x 0.098
MAX BENDING RADIUS	mm	38 – 180	40 – 250	38 – 180	38 – 180	38 – 180
MAX BENDING RADIUS	inch	0..8 – 6.6	1.57 – 9.84	0.98 – 6.6	1.5 – 6.6	1.5 – 6.6
MULTI TUBE BENDING – OD 3/4″	pc	3600	5000	5000	6000	6000
MULTI TUBE BENDING – OD 7/8″	pc	3-4	4-5	3-4	3-4	3-4
MULTI TUBE BENDING – OD 1″	pc	2-3	3-4	2-3	2-3	2-3
MULTI TUBE BENDING – OD 1-1/2″	pc	1-2	2-3	1	1	1
OVERALL L X W X H	mm	1900 x 1000 x 1500	2800 x 1400 x 1800	1900 x 1000 x 1500	7000 x 1200 x 1500	7000 x 1200 x 1500
OVERALL L X W X H	inch	174.8 x 39.4 x 59.1	110.2 x 55.1 x 70.8	174.8 x 39.4 x 59.1	275.6 x 47.2 x 59.1	275.6 x 47.2 x 59.1
TOTAL WEIGHT	kg	1000	1800	1000	2100	2200
TOTAL WEIGHT	lbs	2200	3960	2200	4620	4840
