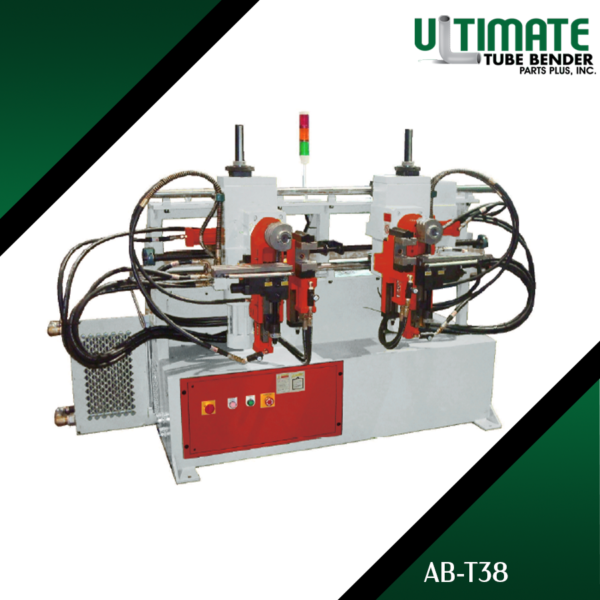

Alpine T38 Twin Head Tube Bender
The Alpine EF50-6 End Forming Machine provides advanced tube end forming with 6 forming stations and state-of-the-art PLC control. Designed for high-precision and efficiency, it is perfect for industries requiring reliable and consistent end forming processes.
Introduction
The Alpine T38 Twin Head Hydraulic Tube Bender provides exceptional performance for bending symmetric tube parts up to 38mm. Designed for high-demand applications, it delivers precise and repeatable bends, ensuring the highest quality in symmetric bending processes.
Key Features:
- Precision Symmetric Bending: Handles tubes up to 38mm with advanced hydraulic compression technology.
- Robust Compression System: Utilizes crank-link systems and strong hydraulic forces for high-quality bends.
- Durable Construction: Built to withstand rigorous industrial use while maintaining precision.
- Advanced Control System: Features user-friendly controls for precise adjustments and operation.
Standard Machine and Accessories:
- Master IV Controller with 15″ color LCD Touch Screen: For easy programming and operation.
- Symmetric Bending Capability: Right and left-hand bending and multi-stack tooling.
- Patented Direct Drive A/C Servo Motor Bending Head: Reduces interference and enhances accuracy.
- Tools for Measuring Push or Roll Bending Radius
- Unlimited Program Storage, Metric and Inch Setting, and XYZ to YBC Conversion
- Air Cooling System, Automatic Slide-way Lubrication, Foot Pedal Cycle Start, Wiper Die Bracket, and 3 Mandrel Rods
- Operation and Maintenance Manual, Tool Box with Tools, Customizable Electric Specs (3 phase 208V, 220V, 480V), and a Safety Mat
Upgrade Options:
- AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication): For enhanced performance.
- Dynamic Visual Simulation Software: Provides collision protection.
- Safety Mat Connection, CE Mark, Safety Scanner, and a Free Standing Pedestal: Replaces the foot pedal.
| SPECIFICATION | UNIT | T38 | T50 | T38-90 | CNCT38-4A | CNCT38-5A |
|---|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 38.1 x 2.5 | 50 x 2.0 | 38.1 x 2.5 | 38 x 2.5 | 38 x 2.5 |
| inch | 1.5 x 0.098 | 2.0 x 0.063 | 1.5 x 0.098 | 1.5 x 0.098 | 1.5 x 0.098 | |
| MAX BENDING RADIUS | mm | 38 – 180 | 40 – 250 | 38 – 180 | 38 – 180 | 38 – 180 |
| inch | 0..8 – 6.6 | 1.57 – 9.84 | 0.98 – 6.6 | 1.5 – 6.6 | 1.5 – 6.6 | |
| MULTI TUBE BENDING – OD 3/4″ | pc | 3600 | 5000 | 5000 | 6000 | 6000 |
| MULTI TUBE BENDING – OD 7/8″ | pc | 3-4 | 4-5 | 3-4 | 3-4 | 3-4 |
| MULTI TUBE BENDING – OD 1″ | pc | 2-3 | 3-4 | 2-3 | 2-3 | 2-3 |
| MULTI TUBE BENDING – OD 1-1/2″ | pc | 1-2 | 2-3 | 1 | 1 | 1 |
| OVERALL L X W X H | mm | 1900 x 1000 x 1500 | 2800 x 1400 x 1800 | 1900 x 1000 x 1500 | 7000 x 1200 x 1500 | 7000 x 1200 x 1500 |
| inch | 174.8 x 39.4 x 59.1 | 110.2 x 55.1 x 70.8 | 174.8 x 39.4 x 59.1 | 275.6 x 47.2 x 59.1 | 275.6 x 47.2 x 59.1 | |
| TOTAL WEIGHT | kg | 1000 | 1800 | 1000 | 2100 | 2200 |
| lbs | 2200 | 3960 | 2200 | 4620 | 4840 |
