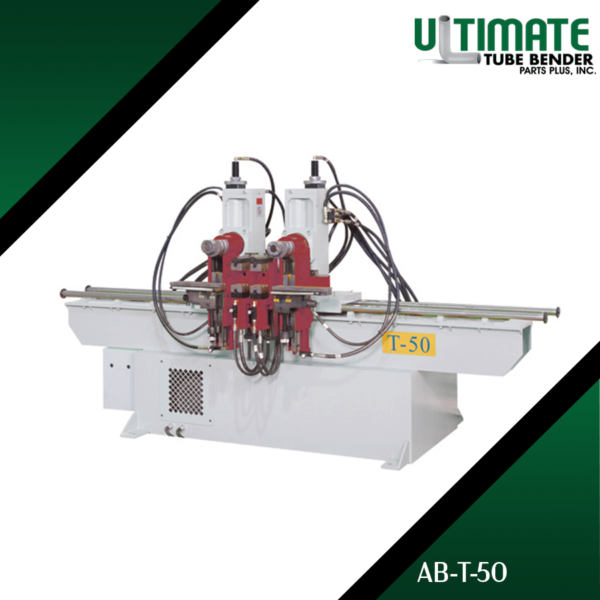

Alpine T50 Twin Head Tube Bender
The Alpine T50 Twin Head Tube Bender offers high-precision symmetric tube bending up to 50mm with robust hydraulic technology. Perfect for demanding manufacturing.
Introduction
The Alpine T50 Twin Head Hydraulic Tube Bender delivers unmatched performance for bending symmetric tube parts up to 50mm. Designed for industrial applications, it offers precise and repeatable bends, ensuring superior quality in symmetric bending processes.
Key Features:
- Precision Symmetric Bending: Handles tubes up to 50mm with robust hydraulic compression technology.
- Strong Compression System: Utilizes advanced crank-link systems for high-quality bends.
- Durable and Reliable: Constructed to withstand heavy-duty industrial use.
- User-Friendly Controls: Features advanced control systems for precise operation and adjustments.
Standard Machine and Accessories:
- Master IV Controller with 15″ color LCD Touch Screen: For easy programming and operation.
- Symmetric Bending Capability: Right and left-hand bending and multi-stack tooling.
- Patented Direct Drive A/C Servo Motor Bending Head: Minimizes interference and maximizes accuracy.
- Tools for Measuring Push or Roll Bending Radius
- Unlimited Program Storage, Metric and Inch Setting, and XYZ to YBC Conversion
- Air Cooling System, Automatic Slide-way Lubrication, Foot Pedal Cycle Start, Wiper Die Bracket, and 3 Mandrel Rods
- Operation and Maintenance Manual, Tool Box with Tools, Customizable Electric Specs (3 phase 208V, 220V, 480V), and a Safety Mat
Upgrade Options:
- AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication): For enhanced performance.
- Dynamic Visual Simulation Software: Provides collision protection.
Safety Mat Connection, CE Mark, Safety Scanner, and a Free Standing Pedestal: Replaces the foot pedal.
| SPECIFICATION | UNIT | T38 | T50 | T38-90 | CNCT38-4A | CNCT38-5A |
|---|---|---|---|---|---|---|
| MAX TUBE O.D. | mm | 38.1 x 2.5 | 50 x 2.0 | 38.1 x 2.5 | 38 x 2.5 | 38 x 2.5 |
| inch | 1.5 x 0.098 | 2.0 x 0.063 | 1.5 x 0.098 | 1.5 x 0.098 | 1.5 x 0.098 | |
| MAX BENDING RADIUS | mm | 38 – 180 | 40 – 250 | 38 – 180 | 38 – 180 | 38 – 180 |
| inch | 0..8 – 6.6 | 1.57 – 9.84 | 0.98 – 6.6 | 1.5 – 6.6 | 1.5 – 6.6 | |
| MULTI TUBE BENDING – OD 3/4″ | pc | 3600 | 5000 | 5000 | 6000 | 6000 |
| MULTI TUBE BENDING – OD 7/8″ | pc | 3-4 | 4-5 | 3-4 | 3-4 | 3-4 |
| MULTI TUBE BENDING – OD 1″ | pc | 2-3 | 3-4 | 2-3 | 2-3 | 2-3 |
| MULTI TUBE BENDING – OD 1-1/2″ | pc | 1-2 | 2-3 | 1 | 1 | 1 |
| OVERALL L X W X H | mm | 1900 x 1000 x 1500 | 2800 x 1400 x 1800 | 1900 x 1000 x 1500 | 7000 x 1200 x 1500 | 7000 x 1200 x 1500 |
| inch | 174.8 x 39.4 x 59.1 | 110.2 x 55.1 x 70.8 | 174.8 x 39.4 x 59.1 | 275.6 x 47.2 x 59.1 | 275.6 x 47.2 x 59.1 | |
| TOTAL WEIGHT | kg | 1000 | 1800 | 1000 | 2100 | 2200 |
| lbs | 2200 | 3960 | 2200 | 4620 | 4840 |
