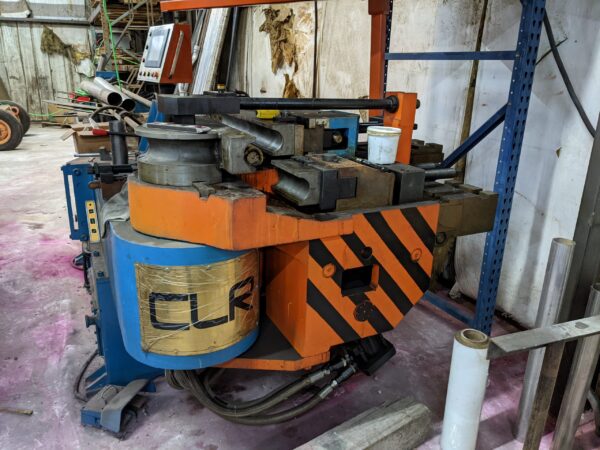

CLR 400 NC Hydraulic Tube Bender

USED CLR 400NC Hydraulic Tube Bender

S/N 42007-29

– RH (Clockwise Rotation)
– Inline Pressure Die Assist
– Wiper Die Holder
– Hydraulic Mandrel Extractor
– Overhead Tie Bar Assembly
– Mandrel Lubricator
– Digital Control

Specs:
– 3″ Pipe Schedule 80
– 4″ Tube Mild Steel x .125 wall
– Approx 14,000 lbs
– 165 us gallons hydraulic oil
– 220 or 440 volts

• 3″ Dia x 6″ CLR, Clamp Die, Pressure Die, Ampco Wiper Die, Ampco Mandrel 3 Ball x .065″ Wall
• Wiper Die 3.0″ OD x 6″ Radius
  – Steel
  – 14″ Long w/Mounting Holes
• Wiper Die 3.0″ OD x 6″ Radius
  – Steel
  – 14″ Long w/Mounting Holes
• Mandrel 3.0″ OD x .083″ Wall
  – Chrome
  – “H” Style Link #11
  – 3 Balls
  – Standard Shank Length 12″
  – Standard Thread 1-3/4″-10
  – Wrench Flats W/Lube
• Bend Die 4.0″ OD x 8.0″ Radius
  – Type #6
  – Removable Grip
  – MAX DOB 180
  – Wiper Die Clearance
  – Rotation CW (Clockwise)
  – Grip Length 4.00″ Knurl .075 Pitch
  – Inserted Keyed & Bolted
• Clamp Die 4.0″ OD x 4″ Long
  – Rotation CW (Clockwise)
  – Knurl .075 Pitch
  – Custom CD T-Key
• Pressure Die 4.0″ OD x 35″ Long
  – Follower Style
  – MAX DOB 180
  – Rotation CW (Clockwise)
  – Custom PD Hangers
• Wiper Die 4.0″ OD x 8″ Radius
  – Ampco 18
  – 14″ Long w/Mounting Holes
• Wiper Die 4.0″ OD x 8″ Radius
  – Steel
  – 14″ Long w/Mounting Holes
• Mandrel 4.0″ OD x .065″ Wall
  – Ampco
  – “HCP” Style Link #11
  – 4 Balls
  – Standard Shank Length 12″
  – Standard Thread 1-3/4″-10
  – Wrench Flats W/Lube
• Mandrel 4.0″ OD x .083″ Wall
  – Ampco
  – “H” Style Link #12
  – 3 Balls
  – Standard Shank Length 12″
  – Standard Thread 1-3/4″-10
  – Spanner Holes W/Lube
• Mandrel 4.0″ OD x .065″ Wall
  – Chrome
  – “HCP” Style Link #11
  – 4 Balls
  – Standard Shank Length 12″
  – Standard Thread 1-3/4″-10
  – Spanner Holes W/Lube
• Mandrel 4.0″ OD x .083″ Wall
  – Chrome
  – “H” Style Link #12
  – 3 Balls
  – Standard Shank Length 12″
  – Standard Thread 1-3/4″-10
  – Spanner Holes W/Lube

Key Features:

• Numerical Control (NC) Technology: The CLR 400 NC is equipped with advanced numerical control capabilities, allowing for highly accurate bends and repeatable performance. This technology ensures that each bend is consistent, minimizing waste and enhancing the overall quality of your projects.
• Hydraulic Power: Featuring a powerful hydraulic system, the CLR 400 NC delivers the force necessary to bend tubes with varying wall thicknesses and materials. This strength enables it to handle heavy-duty applications while maintaining smooth operation.
• Versatile Bending Options: The CLR 400 NC can bend a wide range of tube diameters and shapes, making it suitable for diverse applications. From simple bends to complex geometries, this machine can accommodate your unique fabrication requirements.
• User-Friendly Interface: Designed with the operator in mind, the CLR 400 NC features an intuitive control panel that simplifies programming and operation. The clear display and easy-to-navigate menu allow users to set up bending programs quickly, enhancing productivity.
• Compact and Robust Design: With a compact footprint, the CLR 400 NC is ideal for shops with limited space. Its sturdy construction ensures long-lasting performance and reliability, even in the most demanding environments.

Applications: The CLR 400 NC Hydraulic Tube Bender is perfect for a variety of applications, including:

• Automotive Manufacturing: Ideal for creating custom exhaust systems, roll cages, and other automotive components that require precise bends.
• Aerospace Engineering: Used in the production of aircraft frames, components, and other intricate parts that demand high accuracy.
• Construction and Infrastructure: Essential for fabricating structural components and support systems in buildings and bridges.
• HVAC Systems: Suitable for producing ducts and piping with specific bends for efficient air distribution and ventilation.

Why Choose the CLR 400 NC Hydraulic Tube Bender? Investing in the CLR 400 NC means upgrading your fabrication capabilities with a reliable, high-performance machine. Its advanced features, combined with precision engineering, ensure that you can meet the demands of your projects while delivering exceptional results
