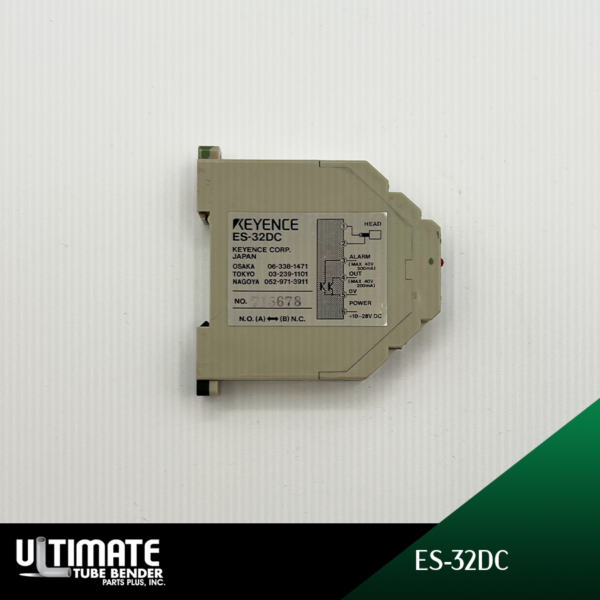

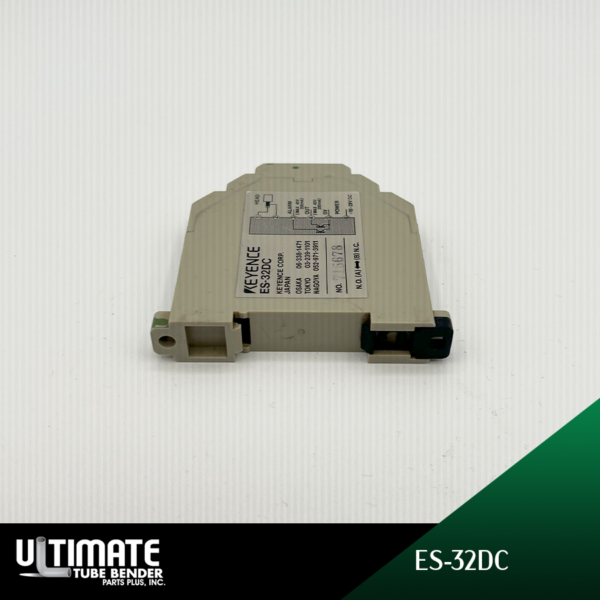

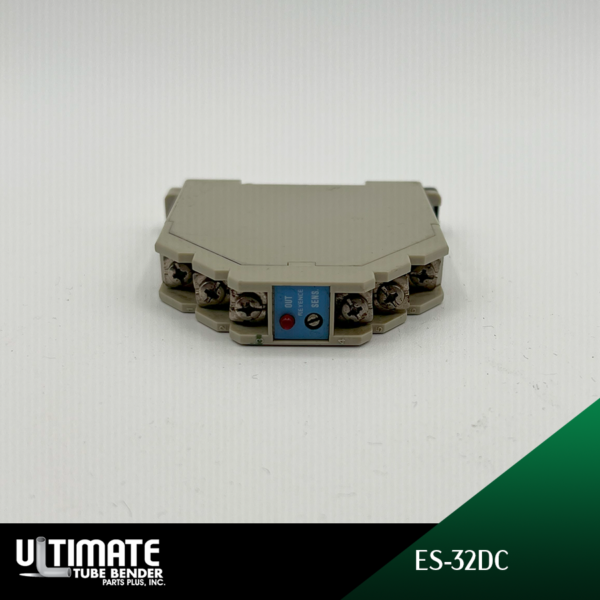

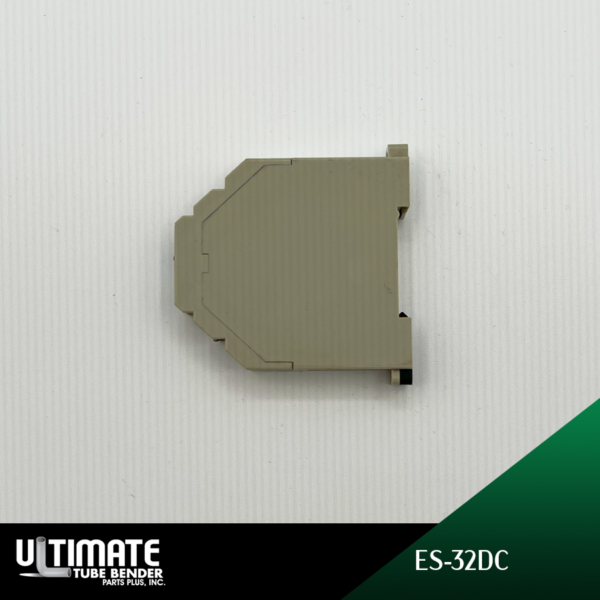

Keyence ES-32DC Amplifier Unit

Keyence ES-32DC NPN Amplifier Unit

• Type: DC NPN output amplifier unit
• Operation Mode: Switch-selectable NO/NC operation
• Indicator: Equipped with a red LED output indicator
• Output Control:
  • Control output up to 200 mA (40 V) maximum
  • Residual voltage: 1 V maximum
• Disconnection Alarm Output:
  • 100 mA (40 V) maximum
  • Residual voltage: 1 V maximum
• Response Time: 1 ms maximum
• Temperature Characteristics: ±8% of detecting distance at 23°C, within a range of 0 to 50°C
• Sensitivity Adjustment: Features a 15-turn trimmer for precise settings
• Power Requirements: 10 to 28 VDC, Ripple (P-P) 10% or less
• Current/Power Consumption: 18 mA maximum
• Environmental Resistance:
  • Ambient temperature range from 0 to +50 °C
  • Relative humidity from 35 to 85% RH (no condensation)
• Weight: Approximately 48 grams

1 In Stock
