Ultimate Tube Bender Parts Plus, Inc. (UTB MI) offers a Makino A61NX 5-Axis CNC Horizontal Machining Center in like-new condition with extremely low cutting hours. This 2020 Makino A61NX Horizontal Machining Center is a high-performance production machine designed for precision, speed, and reliability in advanced manufacturing environments.

With approximately 50–53 cutting hours, this Makino A61NX is an exceptional opportunity for manufacturers seeking near-new performance without new-machine lead times.

---

Overview of the Makino A61NX Horizontal Machining Center

The Makino A61NX is a next-generation horizontal machining center (HMC) engineered for high-accuracy, multi-face machining. It is widely used in aerospace, automotive, firearms, medical, and precision component manufacturing.

Built by Makino, the A61NX platform is known for thermal stability, rigid construction, and advanced CNC control technology.

Machine summary:

• Model: Makino A61NX

• Type: 5-Axis CNC Horizontal Machining Center

• Year: 2020

• Condition: Like New

• Cutting Hours: Approx. 50–53 hours

• Stock #: 3223

---

Makino A61NX Specifications

The Makino A61NX 5-Axis CNC Horizontal Machining Center is designed for high-output, precision machining with excellent flexibility.

Core specifications:

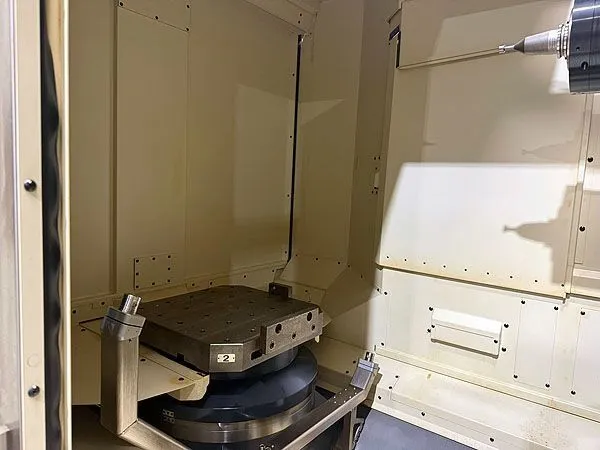

• Number of Pallets: 2

• Pallet Size: 19.7″ × 19.7″

• Pallet Indexing: Full Contouring – 360,000 positions

• Max Workpiece Weight: 1,574 lbs

Axis travel:

• X-Axis: 28.7″

• Y-Axis: 25.6″

• Z-Axis: 31.5″

• Spindle Nose to Pallet Center: 3.9″ – 35.4″

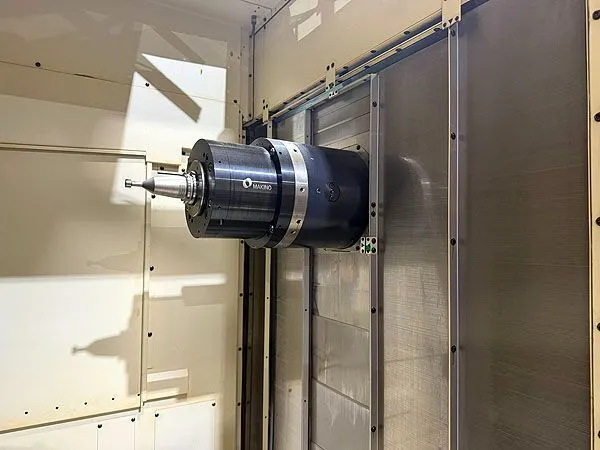

Spindle:

• Speed Range: 50 – 14,000 RPM

• Motor Power: 29.5 HP

• Taper: CAT 40

Tooling & capacity:

• Tool Changer: 60 positions

Machine footprint:

• Floor Space (W × D): 115″ × 193″

• Machine Weight: 27,000 lbs

---

Advanced CNC Control & Software

This Makino A61NX 5-Axis CNC Horizontal Machining Center is equipped with Makino’s advanced control and software package designed for precision and surface quality.

Equipped with:

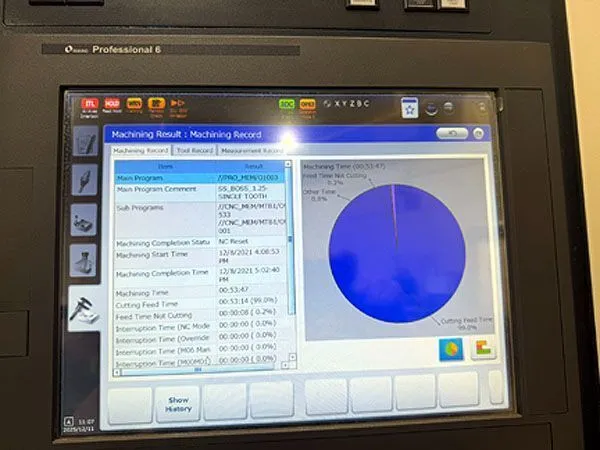

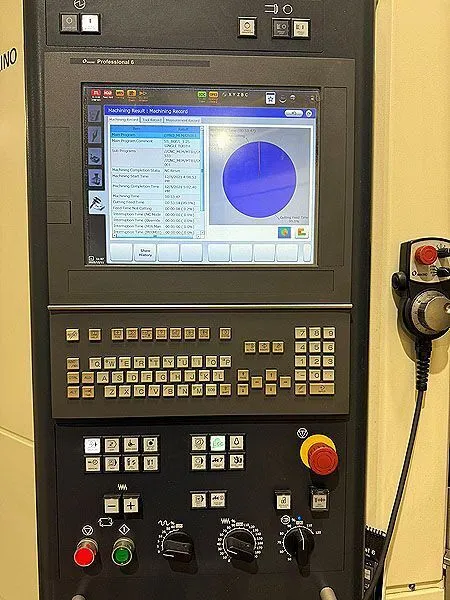

• Makino Pro 6 CNC Control

• Super GI.5 (Super Geometric Intelligence)

• Full Contouring 5th Axis Software

• Tilted Working Plane Command

• Upgraded 2MB Memory

These features allow faster cycle times, smoother motion, and superior surface finishes on complex parts.

---

5th Axis & Automation Features

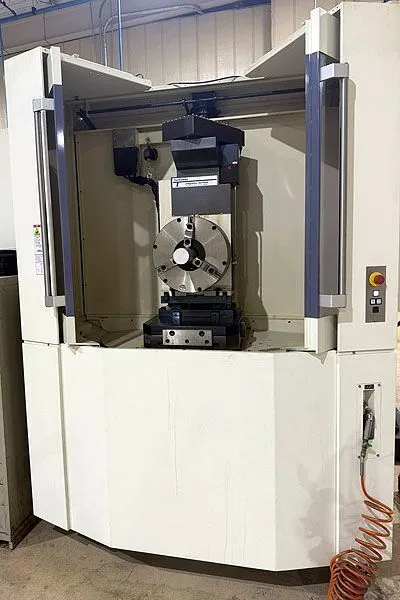

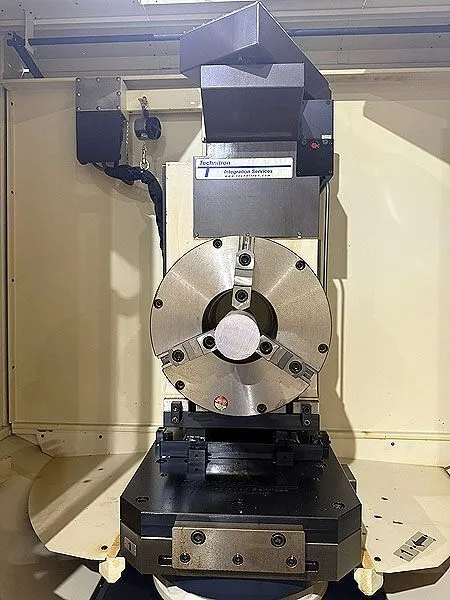

One pallet is equipped with a 13.7″ Tsudakoma RTV-304 5th Axis, allowing full 5-axis contouring directly on the horizontal platform.

Additional equipment includes:

• Tsudakoma RTV-304 5th Axis

• 1,000 PSI Through-Spindle Coolant

• PQI / Renishaw OMP400 & NC4S Probing System
  (Probe not included)

• Chip Conveyor

• Full Coolant System

This configuration makes the Makino A61NX ideal for complex multi-sided machining with minimal setups.

---

Why the Makino A61NX Is Ideal for Precision Manufacturing

The Makino A61NX Horizontal Machining Center is built for manufacturers who demand accuracy, speed, and long-term reliability.

Benefits include:

• Reduced setup times with dual pallets

• High thermal stability for tight tolerances

• Excellent surface finish with SGI.5 software

• True 5-axis capability in a horizontal platform

• Extremely low hours – like new condition

This makes the Makino A61NX 5-Axis CNC Horizontal Machining Center a premium asset for high-value production.

---

Makino A61NX for Sale | UTB MI

This Makino A61NX 5-Axis CNC Horizontal Machining Center is available through UTB MI and represents a rare opportunity to acquire a near-new Makino with minimal usage.

Why buy from UTB MI:

• High-end CNC equipment expertise

• Honest condition representation

• Machines selected for real production environments

• Trusted industrial equipment supplier

---

Makino A61NX 5-Axis CNC Horizontal Machining Center | Stock #3223

If your operation requires a like-new horizontal machining center with true 5-axis capability, the Makino A61NX is an outstanding investment.

📞 Contact Ultimate Tube Bender Parts Plus, Inc. today for pricing and availability on this Makino A61NX 5-Axis CNC Horizontal Machining Center.

Horizontal Machining Center
MAKINO A61NX
Very Good Condition
Year: 2020
Stock #3223

pecifications:

Number of Pallets: 2
Pallet Width: 19.7″
Pallet Length: 19.7″
Pallet Indexing: Full Contouring- 360,000 positions.
Max Workpiece Weight: 1,574 lbs
X-Axis Travel: 28.7″
Y-Axis Travel: 25.6″
Z-Axis Travel: 31.5″
Spindle Nose to Center of Pallet 3.9″ – 35.4″
Spindle Speed: 50 to 14,000 RPM
Spindle Motor: 29.5 HP
Spindle Taper: CAT 40
Tool Changer Positions: 60
Floor Space Dimensions (W x D): 115” x 193”
Machine Weight: 27,000 lbs

Machine Condition: Like New – Approximately 50 Cutting Hours

Equipped With:

Pro 6 CNC control,
(1) Pallet has a 13.7″ Diameter Tsudakoma RTV-304 5th Axis, 1,000 PSI through-Spindle Coolant, PQI/Renishaw OMP400 & NC4S Probing System (PROBE NOT INCLUDED),
Upgraded memory – 2MB,
Upgraded Super GI.5 Control – Super Geometric Intelligence Software, SGI.5
Full Contouring 5th Axis Software,
Titled Working Plane Command,
Chip Conveyor & Coolant System.
Like New Only 53 Cutting Hours
