Sunrise HBM-45 Bending Machine

The hydraulic bending machine is the newest addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations. Custom tooling is also available.
SUNRISE horizontal bending machines (HBM) feature:
Excellent repeatability of stroke with an accuracy of +- 0.01″ with Digital Linear Encoder and Proximity Sensors
Programmable touch screen controller – Standard
Name brand electric and hydraulic components ensure machine reliability
CNC machined one-piece solid table design
A wide range of standard and custom tooling is available
Manual back gauge is included for accurate positioning.
Both HBM models feature a programmable touch-screen controller with 50 program memory standard.
Trilogy Machinery offers 100% factory authorized service and support as well as a full stock of spare parts and accessories in our northern Baltimore Location.
New manual positioning HBM now available!

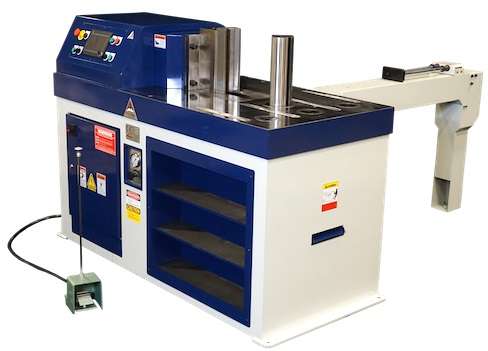

The SUNRISE CNC backgauge extends the accuracy and efficiency of the HBM series horizontal bending machines. This optional equipment comes standard with an enhanced touch screen control and provides a very user friendly interface.
The CNC backgauge is accurate to ±0.01″ and when combined with the digitally controlled cylinder travel, achieves complex bending work with ease. The CNC backguage can be programmed to slightly retract immediately before bending to prevent damage from material movement. Control memory can store up to 99 programs with 10 bends each for quick and easy programming of a lot of different jobs.

Capacity 8″ x 1/2″

Cylinder Force 45 Tons

Forward Speed 1.5″/ Sec

Stroke 10″

Working Height 37″

5 hp Motor

2275 lbs
