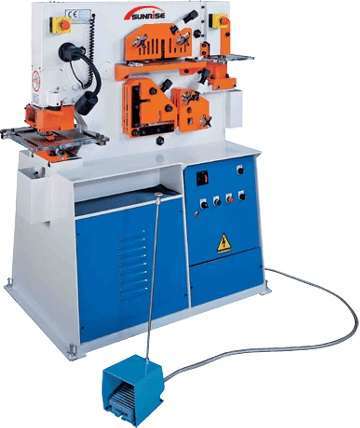

Sunrise Single Cylinder IW-55A Ironworker

The IW-55A features a vertical moving ram at the punching station which improves the punching result and enables the use of optional tooling such as pipe notching and bending tools. The square/round bar shear is a stand-alone station with possibility of optional channel shear and section bar shear tooling. This model also features angle shearing and bar shearing stations.

Model IW-55A

55 Ton
Throat 7″
Punch Capacity 1-½” in ⅜“
Angle Shear 4″ x 4″ x ⅜“
Plate Shear 12″ x ½“
Notcher 2″ x 3-½“in x ¼”
5 HP Motor
2500 lbs.
