Trumpf TruPulse 304 CNC Laser Welder 2011
YEAR: 2011
MANUFACTURER: Trumpf
MODEL: TruPulse 304
CONDITION: New
LOCATION: Brighton

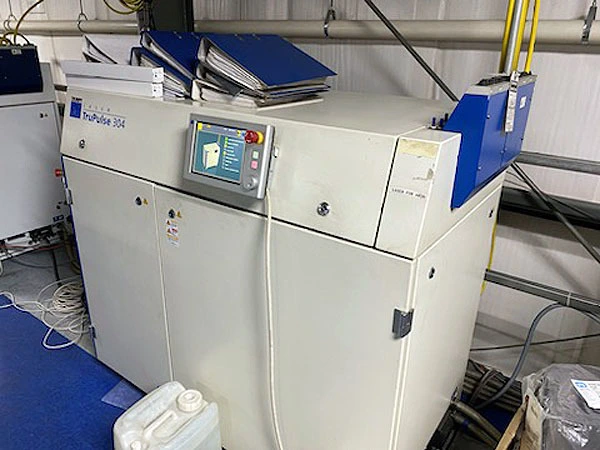

Used Trumpf TruPulse 304 CNC Laser Welder (2011) — Precision, Power, and Proven Reliability
The Used Trumpf TruPulse 304 CNC Laser Welder (2011) is a high-performance pulsed Nd:YAG laser welding system designed for precision joining, micro-welding, and contour welding applications.
Known for its accuracy, stability, and long service life, the TruPulse 304 from Trumpf provides exceptional control of pulse energy and weld depth, making it ideal for automotive, aerospace, and medical manufacturing.
This 2011 model has been fully inspected, tested, and verified by UTB Michigan, ensuring that the optical system, laser resonator, and CNC control are in optimal condition and ready for production use.
⚙️ Machine Specifications
| Specification | Details |
|---|---|
| Model | Trumpf TruPulse 304 |
| Year | 2011 |
| Laser Type | Pulsed Nd:YAG |
| Average Power | 300 Watts |
| Peak Power | 3,000 Watts |
| Controller | Trumpf CNC Control |
| Cooling System | Integrated Water-Cooled Chiller |
| Condition | Used — Tested & Verified |
| Manufacturer | Trumpf Inc. |
| Power Source | 230V / 3-Phase |
| Location | Michigan, USA |
| Availability | In Stock — Ready to Ship |
🔍 Key Features
-
High-precision pulsed Nd:YAG laser for fine and deep welding applications
-
300W average / 3kW peak power for superior performance
-
CNC control allows fully programmable welding paths
-
Perfect for spot, seam, and contour welding
-
Inspected and tested by UTB Michigan for accuracy and stability
🧾 Inspection & Testing Process
Every used Trumpf TruPulse machine sold by UTB Michigan undergoes an extensive inspection, including:
-
Laser power testing (beam quality, consistency, and peak power)
-
Optics and beam delivery alignment
-
CNC calibration for precision movement and positioning
-
Cooling system pressure and leak test
-
Operational weld tests on aluminum and stainless steel
💬 Why Buy from UTB Michigan?
-
Fully inspected, production-ready machines
-
25+ years of expertise in laser welding, bending, and fabrication systems
-
Access to spare parts, service, and technical support
-
Nationwide and international shipping available
📞 Request a Quote Today
Learn more about this Used Trumpf TruPulse 304 CNC Laser Welder (2011) by contacting UTB Michigan.
Visit www.benderparts.com
Used Trumpf TruPulse 304 CNC Laser Welder 2011
Description
Laser Parameters
Laser Power at the workpiece 300 W
Max. Peak Pulse Power 9 kW
Beam Quality 16 mm . mrad
Wavelength 1064 nm
Adjustable Pulse Duration 0.3 ms – 50 ms
Max. Pulse Repetition Frequency 833 Hz
Max. Pulse Energy 60 J
90 J
Min. Laser Light Cable Diameter 400 um
Structural Design
Dimension 59” x 54” x 29”
Max. Number of Laser Light Cables 6
Laser Parameters
Laser Power at the workpiece 300 W
Max. Peak Pulse Power 9 kW
Beam Quality 16 mm . mrad
Wavelength 1064 nm
Adjustable Pulse Duration 0.3 ms – 50 ms
Max. Pulse Repetition Frequency 833 Hz
Max. Pulse Energy 60 J
90 J
Min. Laser Light Cable Diameter 400 um
Structural Design
Dimension 59” x 54” x 29”
Max. Number of Laser Light Cables 6
