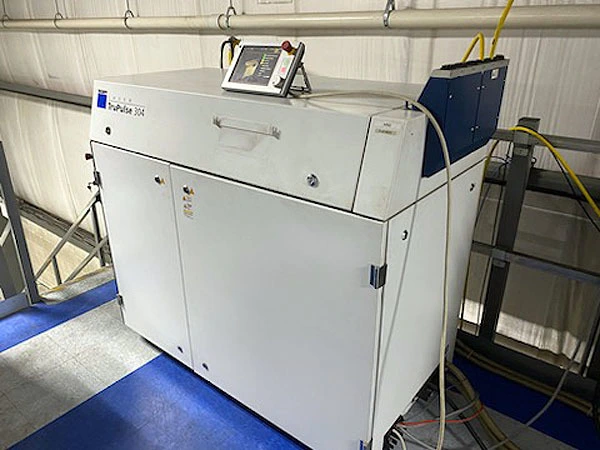

Trumpf TruPulse 304 CNC Laser Welder 2017

Used Trumpf TruPulse 304 CNC Laser Welder (2017) — Precision Laser Welding by UTB Michigan

The Used Trumpf TruPulse 304 CNC Laser Welder (2017) is a premium-grade laser welding system designed for high-precision applications in manufacturing, automotive, and aerospace industries.

This model delivers consistent, repeatable welds with Trumpf’s advanced pulsed Nd:YAG laser technology, ensuring fine control over penetration depth and heat input. With CNC programmability and robust construction, the TruPulse 304 is ideal for spot, seam, and contour welding on metals such as stainless steel, copper, and aluminum.

Each unit sold by UTB Michigan is fully tested and verified to ensure the laser resonator, optics, and CNC control system perform within factory specifications.

⚙️ Machine Specifications

🔍 Key Features

• 300W average / 3kW peak Nd:YAG laser for precision welding

• Trumpf CNC control for programmable welding sequences

• Stable beam quality for fine and micro-welds

• Capable of welding reflective metals and thin-gauge materials

• Fully tested, calibrated, and verified by UTB Michigan

🧾 Inspection & Testing

All used Trumpf laser welders from UTB Michigan go through a 5-point inspection:

• Laser power and beam quality testing

• CNC axis calibration and motion test

• Optics alignment and fiber delivery inspection

• Cooling and safety system verification

• Operational welding test on steel and aluminum samples

💬 Why Buy from UTB Michigan?

• Every machine is tested, cleaned, and production-ready

• 25+ years of experience in laser, bending, and fabrication systems

• Expert post-sale support and parts availability

• Fast, insured nationwide and international delivery

📞 Request a Quote Today
Get pricing and availability for this Used Trumpf TruPulse 304 CNC Laser Welder (2017) by contacting UTB Michigan.
Visit www.benderparts.com

Used Trumpf TruPulse 304 CNC Laser Welder 2017

Description

Laser Parameters
Laser Power at the workpiece 300 W
Max. Peak Pulse Power 9 kW
Beam Quality 16 mm . mrad
Wavelength 1064 nm
Adjustable Pulse Duration 0.3 ms – 50 ms
Max. Pulse Repetition Frequency 833 Hz
Max. Pulse Energy 60 J
90 J
Min. Laser Light Cable Diameter 400 um

Structural Design
Dimension 59” x 54” x 29”

Max. Number of Laser Light Cables 6

Laser Parameters
Laser Power at the workpiece 300 W
Max. Peak Pulse Power 6 kW
Beam Quality 16 mm . mrad
Wavelength 1064 nm
Adjustable Pulse Duration 0.3 ms – 50 ms
Max. Pulse Repetition Frequency 833 Hz
Max. Pulse Energy 60 J
90 J
Min. Laser Light Cable Diameter 400 um

Structural Design
Dimension 59” x 54” x 29”

Max. Number of Laser Light Cables 6
