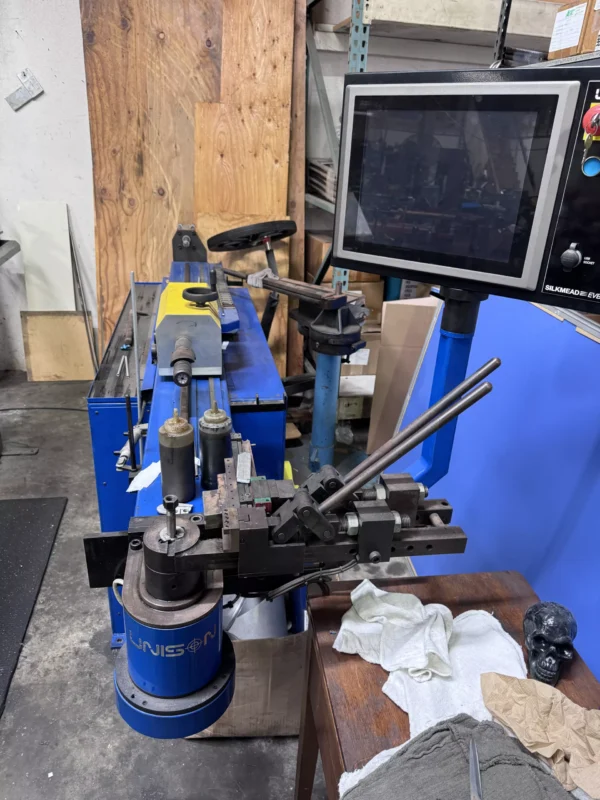

Unison EvBend 1000 Manual CNC Tube Bender

The Unison EvBend range of 3-axis tube bending machines is the modern evolution of the original Silkmead tube bending machines – trusted for decades in aerospace and precision engineering.

Following Unison Ltd’s acquisition of Silkmead, the technology was re-engineered and refined into today’s EvBend 1000 and its larger sibling, the EvBend 1500 and 2000.

• Designed for low-volume, high-accuracy production and prototyping
• Relied upon across the aerospace, MRO, Formula 1 and oil & gas industries for precision bending of tube up to 50 mm in diameter
• Manually operated, but with servo-assist on the EvBend 1500 and 2000 models
• All three bending axes are CNC-controlled via encoders and progressive electromagnetic brakes to deliver consistent, repeatable results
• PC-based 15” touchscreen CNC interface, capable of storing infinite parts, processing up to 1,000 bends per component and integrating with CAD and most tube measuring systems
• Precision bending at fraction of the cost of fully automated bending machines

Bending Capacity 3 mm – 16 mm (22 mm in copper)
Bend Radius (CLR) Up to 135 mm
Bend Programme Lines Unlimited
Bend Settings 100
Max Tube Length Over Mandrel Customer specific
Max Bend Arm Movement 190°
Machine Accuracy +/- 0.1 mm & +/- 0.1°
Screen LCD 15” touchscreen
Length 3,658 mm (std)
Height at Carriage 1,000 mm
Width at Bend Head 840 mm
Weight 365 kg
Electrical Single Phase 220 – 240V
