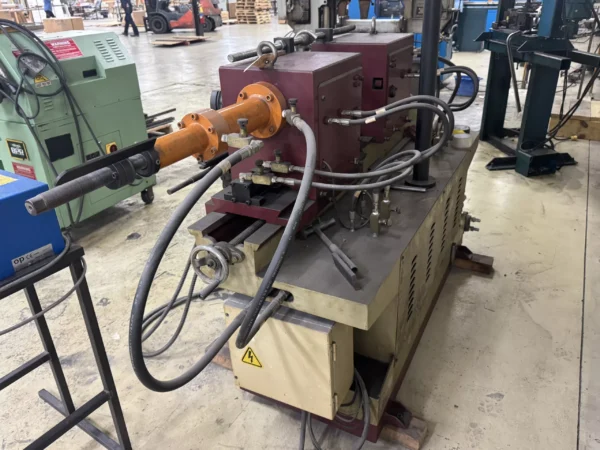

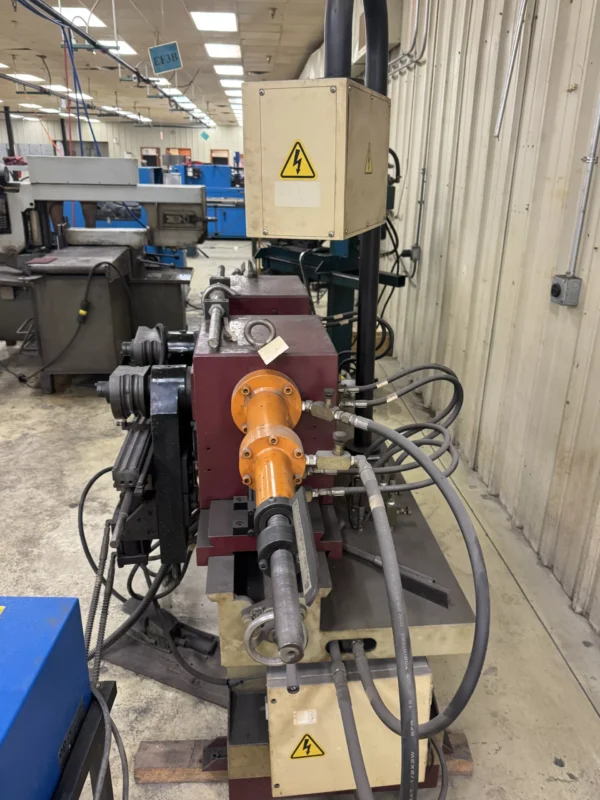

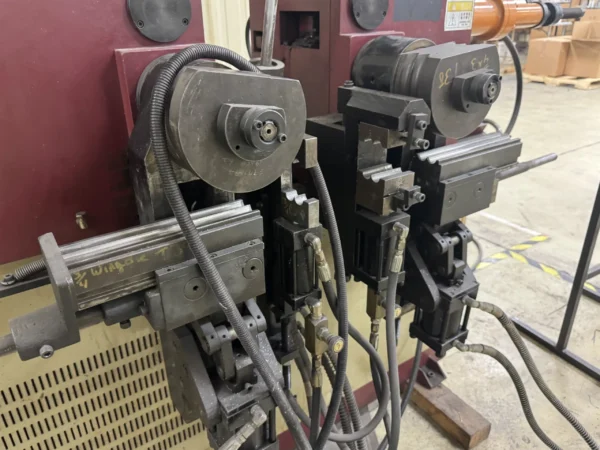

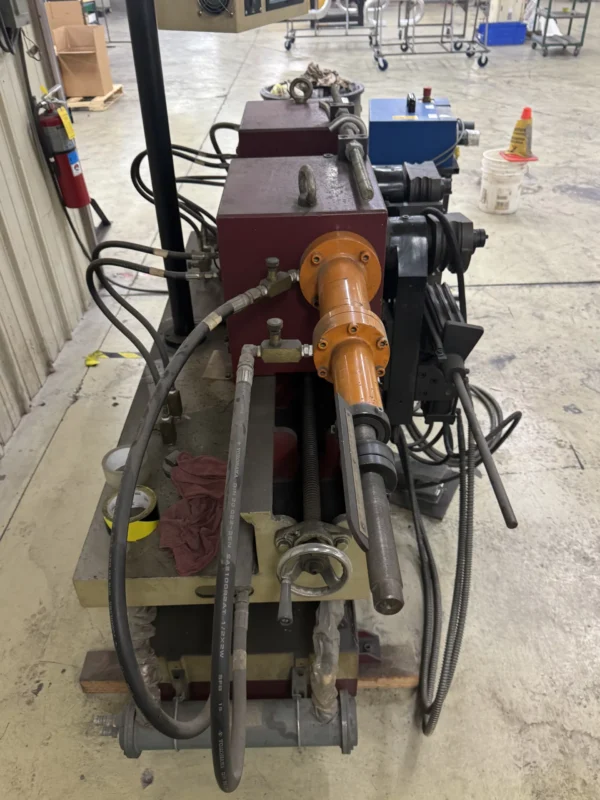

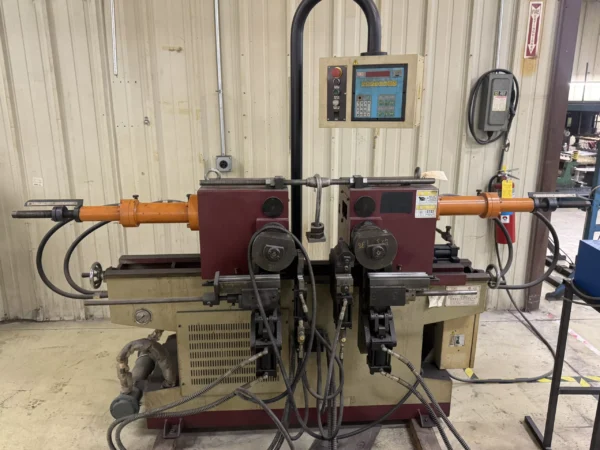

YLM CR-T38D Twin Head Tube Bender

• With the proportional pressure control, you can hand 2 pipes synchronously & rapidly and get the final production with precise angles & beautiful surface without wrinkles. The 2 angles can be different & adjustable. So this machine is the most proper machine for general two-end bending.

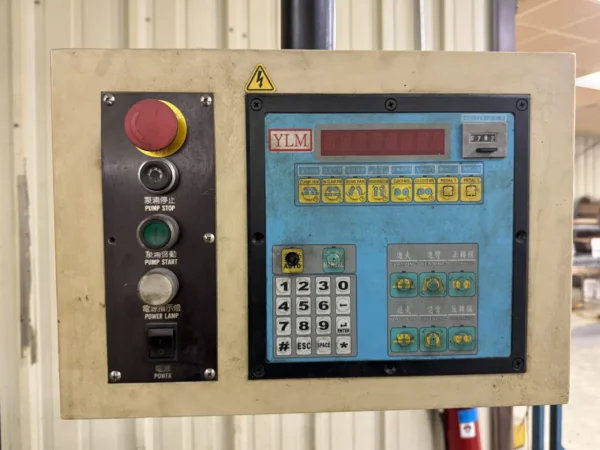

• Both manual and automatic operations are available.
• The machines is equipped with emergency stop device.
• Bending angles are adjustable from 0˚ ~ 180˚.
• High production capacity: Max.720 pcs of two-end bending pipes in one hour.
• The distance between the center line of 2 main shafts are 180 m/m (Min.) & 930 m/m (Max.) for CR-T38 type.

Production capacity for CR-T38:
(1) produce 1 pipe each time for O.D. 38 m/m pipe.
(2) Produce 2 pipes at the same time for O.D. 25 m/m pipe.
(3) Produce 3 pipes (Max.) at the same time for O.D. 19 m/m & smaller pipes. (Tube w.t ≤ 1.5 m/m)
