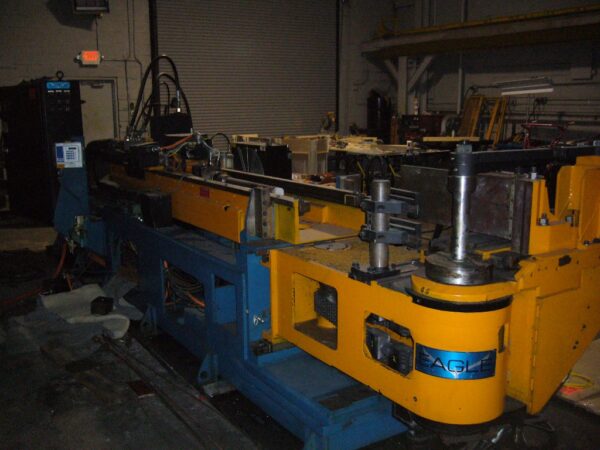

Eagle EPT 75MR CNC Hydraulic Tube Bender Refurbish Sample

MANUFACTURER: Eagle
MODEL: EPT 75MR
CONDITION: Refurbished
DETAILS:

Eagle EPT75MR Hydraulic Tube Bender:

  • Bender is upgraded with a BendPro CNC multi-axis controller. The controller is manufactured by Current Tech. The controller has a quick disconnect to the main electrical box. Specifications are listed below.

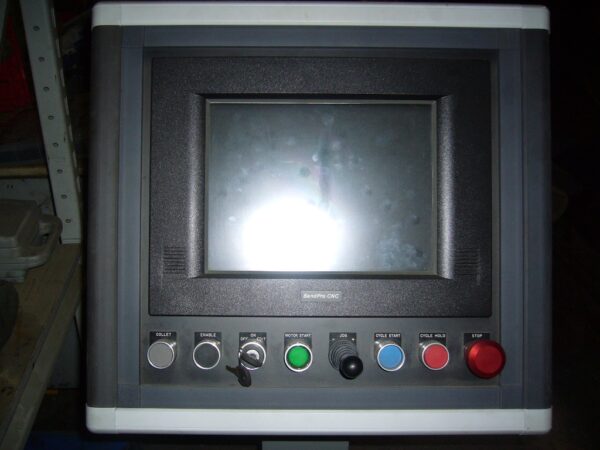

 EXTREMELY COMPACT: The BendPro control is housed in an 8” x 18” x 18” aluminum enclosure. The control is networked to a compact I/O system which consumes very little space in the benders electrical cabinet.

  1. PRODUCTION IS INCREASED: The BendPro determines optimized move sequences and generates a List of Commands (Run List) before any bending is done. The control will detect and communicate and possible run times or interference problems before any material is wasted. Simultaneous motion is utilized whenever possible to assure the highest possible production yields.
  2. QUALITY IS IMPROVED: The latest in digital servo technology is used to ensure accurate machine movements and excellent repeatability. The BendPro can also interface to measuring machines to automate the inspection and correction process.
  3. RELIABLE OPERATION: An industrial Flat Panel PC serves are the operator interface and the control computer. This high level of integration reduces component count, cables, and connectors while increasing reliability. A touch screen eliminates the need for a keyboard and allows for reliable and easy operation. Optically isolated input/output modules from industry leader OPTO 22 are used to interface the control to sensors and solenoids. Only the highest quality components are used readily available from several sources worldwide. Automatic backup of the Parts Database and Machine Parameters file ensure that a faulty PC can be instantly replaced in the unlikely event of a failure.
  4. EASY TO OPERATE” Based on the Windows XP Operating system, the BendPro software was written with the easy of use in mind. A graphical representation of the bender and it’s functions are displayed on the high resolution, bright LCD.
  5. EASY ACCESS DATABASE: All Part information is storred in a Microsoft Access Databace. This means the data is easily available to other Windows applications. The BendPro can import Part numbers created in the office or on other BendPro controls. Advanced database operations include network wide part searches, query and deletion of ‘inactive’ part numbers, and automatic compaction. Another unique BendPro feature is the Rapid Setup Index. When new parts are added or imported, the control will look for a matching Setup Index (OD, wall, CLR, and material). If a matching Setup Index is found, all setup and tooling parameters will be automatically attached to the new part. Custom or’default’ Setup data can be used on each Part number.
  6. POWERFUL PARTS EDITOR: Bend data can be entered in the form of XYZ Cartesian coordinaces (From CAD programs) or YBC or LRA bend data. The control can also convert back and forth between XYZ and YBC bend data.
  7. ADVANCED JOG MODE: Each device on the bender can be individually jogged with the joystick. In addition, a tube can be bent to any specified angle without the need to create a programmed part.
  8. ADDITIONAL FEATURES:
    1. Unlimited Part Number storage
    2. SpringBack and Elongation calculator
    3. 3D Display, rotate, and printing routines
    4. Advanced Diagnostics
    5. Measuring Machine interfaces
    6. Programmable speeds for each axis (1 to 100%)
    7. Graphical representation of bender renders clear view of machine status
    8. Open and Closed collet modes supported
    9. Unlimited hitch moves
    10. Recapture tube end in zone areas
    11. Swing away wiper die support
    12. Generates HTML status reports that can be browsed from anywhere in the world
    13. Teach Mode avoids interference problems with single or multi-stack tooling
    14. See currenttech.com for additional information on controller



  • Machine cleaned, sanded & painted. Standard colors are Safety Blue & Safety Orange (unless other specified)



  • Safety Mat Included



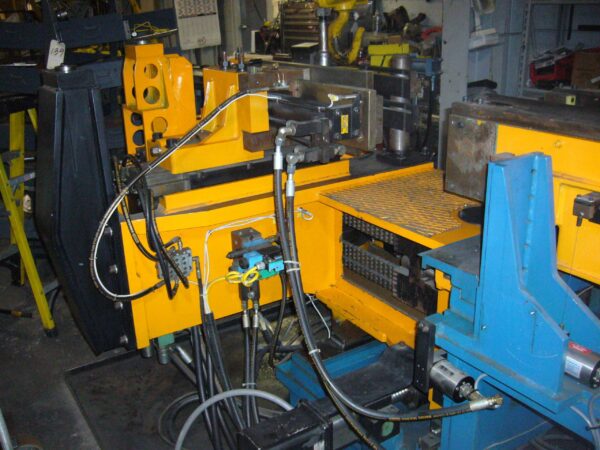

  • New hydraulic hoses

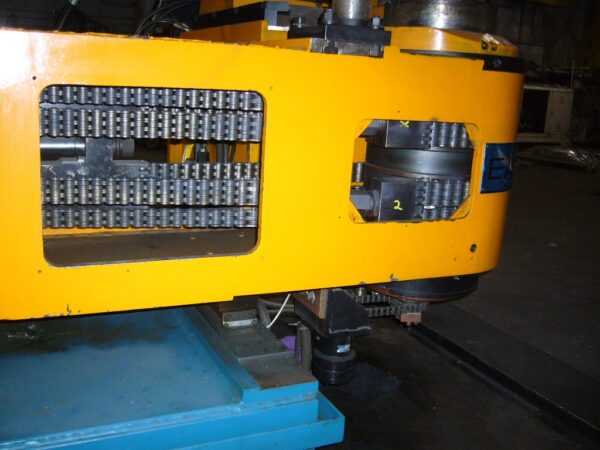

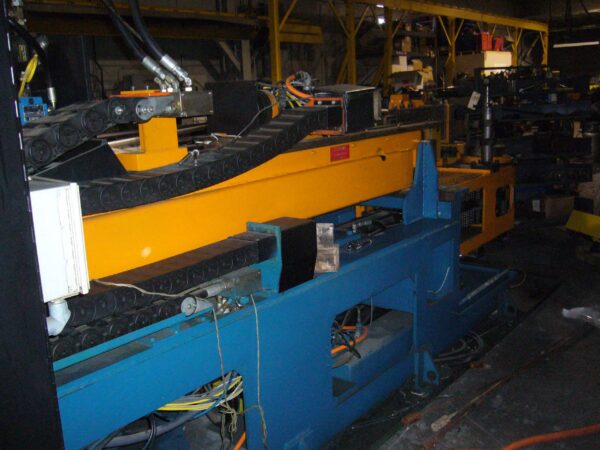

  • New Bend Chain & Connecting Links



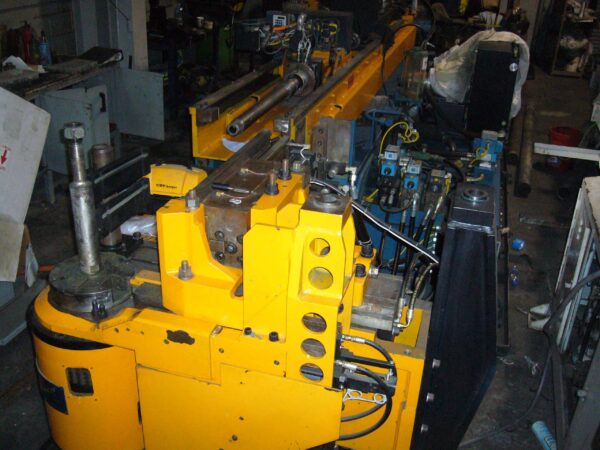

  • Swing Arm:
    1. Removed & inspected
    2. Remove & replace cup & cone bearings
    3. Slides (Grind If necessary)
    4. Wear Strips (Grind Or Replace If Necessary)



  • Stationary Arm:
    1. Inspected
    2. Slides (Grind If necessary)
    3. Wear Strips (Grind Or Replace If Necessary)



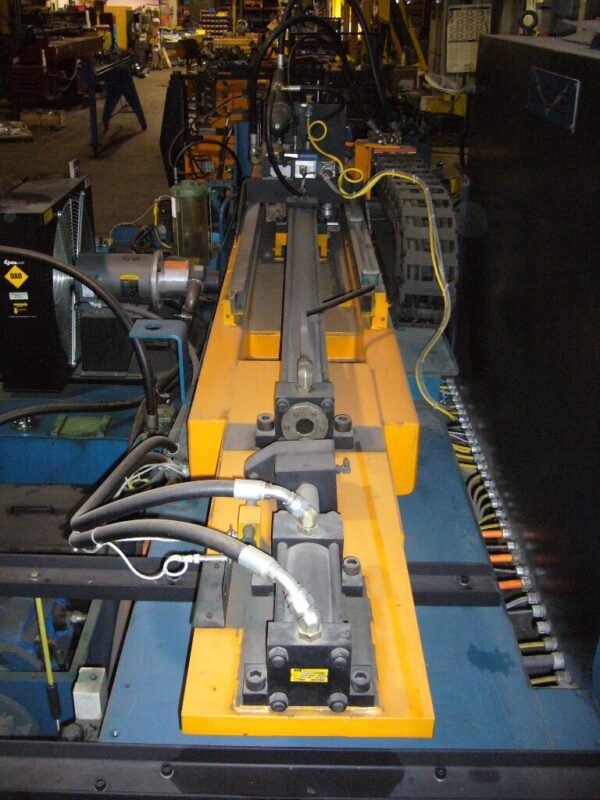

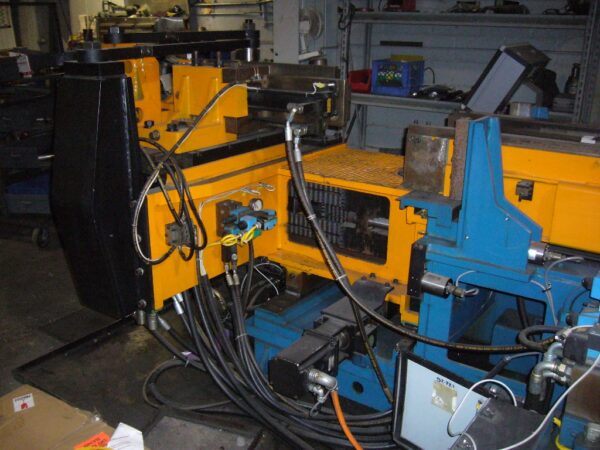

  • Hydraulic cylinders including (Bend, clamp, pressure, mandrel, PDA, carriage/close-open, carriage/advance-retract, carriage bed/up-down, bend die align). If cylinders are leaking the rod gland seals will be replaced. If worn out we will send out for quote.

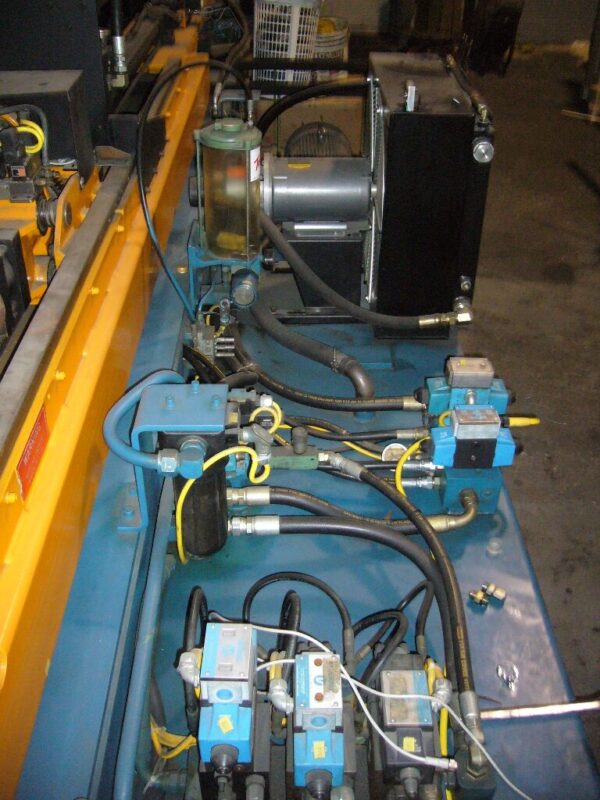

  • Any hydraulic valves will be replaced if not working. The suction strainers and filter elements will be replaced. Hydraulic tank cleaned.



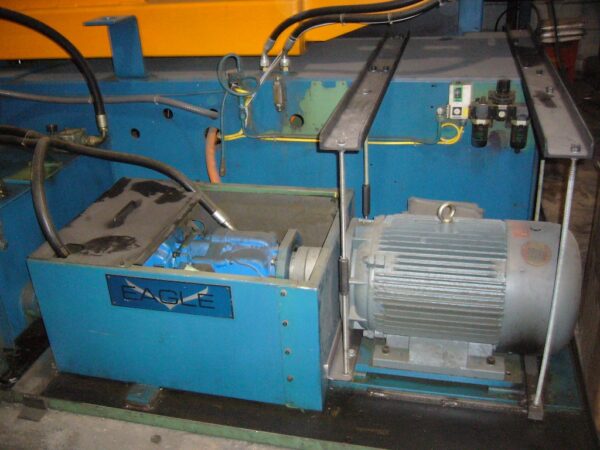

  • New main electric motor (TEFC) Totally Enclosed Fan Cooled 50 hp 230/460 (The motor currently on it is 575 Volts)

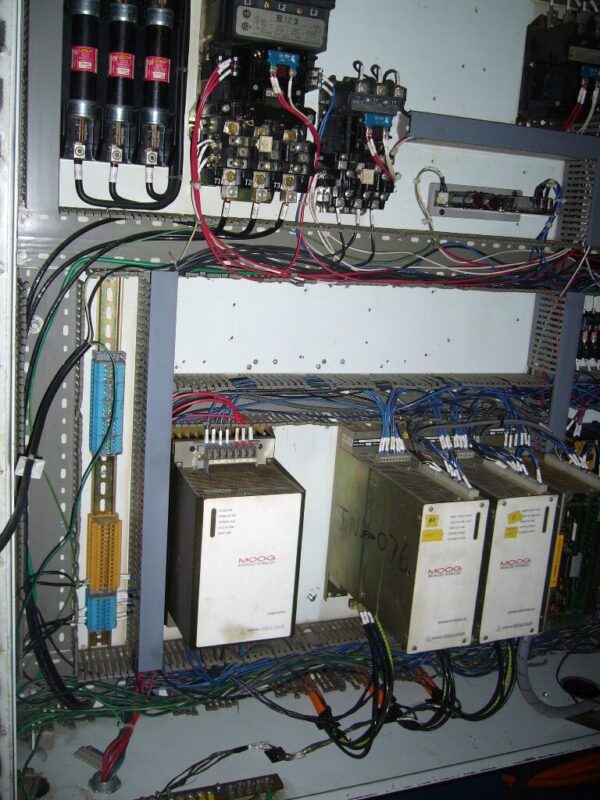

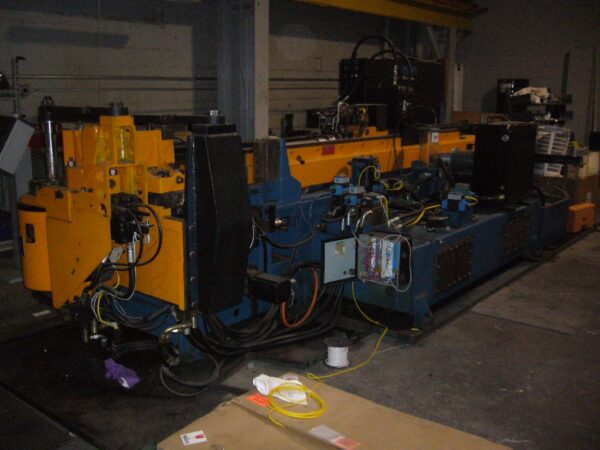

  • Electrical (Midwest Bender Services):
    1. New Prox Switches
    2. Rewire
    3. Add Yo-Yo Encoders (X) & (Y) Axis
    4. Use Existing Servo Motor (Repair or Replace If Necessary)



  • Machine Unloaded & Loaded



  • Machine cycled & tested. Sample material & a set of tooling are required to be provided by customer.



EXTRAS:



  • Modify bend rod end to be able to add longer chain lengths to bend up to 180 degrees
  • Modify bend turnbuckle
  • New Oil Ail Heat Exchanger, fittings, hoses & weld fittings
  • New Magnaloy Coupling for pump / motor
  • Sent out (2) hydraulic pumps to be rebuilt
  • Sent out ball screws to be rebuilt
  • Sent out MOOG Drive to be rebuilt
  • Sent out MOOG Power Supply to be rebuilt
  • Refit masterbar
LOCATION: Brighton, MI
